Запчасти Case 590SN (90.124.AN[01]) - VAR - 745160 - SEAT, AIR SUSPENSION, PEDESTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

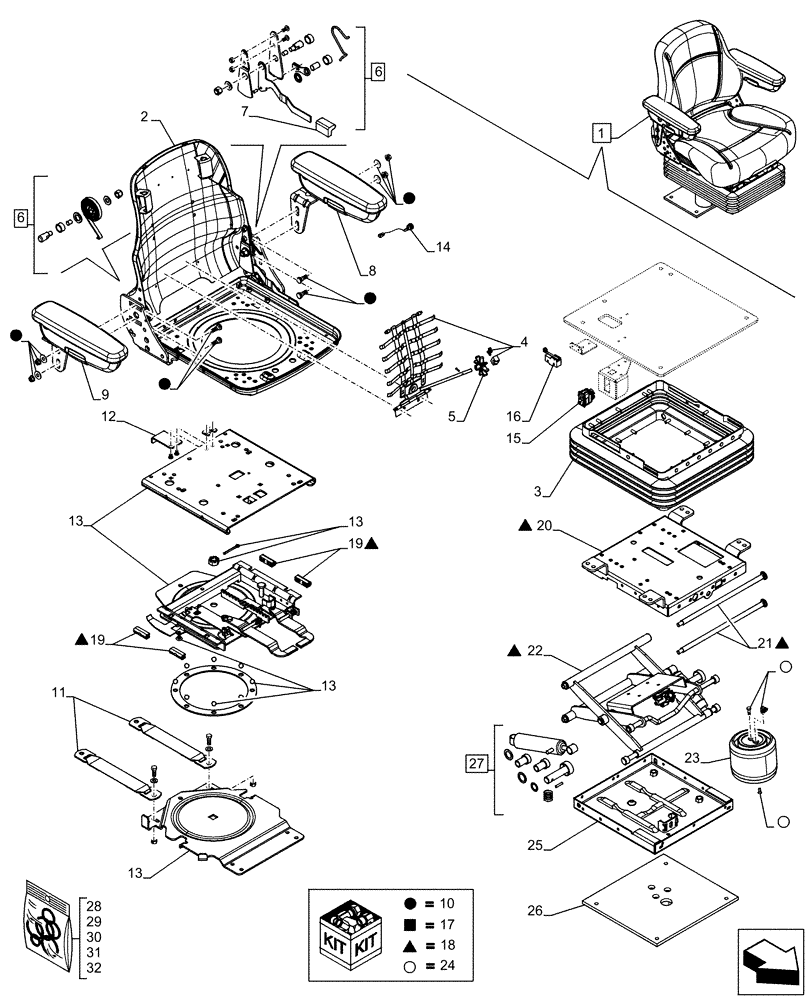

Схема запчастей Case 590SN - (90.124.AN[01]) - VAR - 745160 - SEAT, AIR SUSPENSION, PEDESTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
22
10
7
12
14
19
8
16
5
9
24
4
1
27
20
31
28
17
11
18
30
32
29
23
3
2
13
19
26
15
13
13
25
6
21
6

Артикул

Название

Примечание

Количество

1

47655507

DRIVER SEAT

Vinyl Wheat, ASSY, Incl 2 - 32

1шт.

See Seat Components also in Figure 90.124.AE (01)

1шт.

2

84602606

KIT

1шт.

3

84120495

KIT

Boots Part

1шт.

4

47357018

KIT

Lumbar Sears

1шт.

5

47598681

KNOB

Switch Rocker

1шт.

6

47357023

KIT

Service Recliner

1шт.

7

47357025

KNOB

1шт.

8

47368643

SERVICE KIT

1шт.

9

47919000

ARMREST

1шт.

10

87308154

SEAT ACCESSORY

Arm Pad

2шт.

11

87475826

SERVICE KIT

Tether Kit

1шт.

12

84174986

BRACKET

1шт.

13

47919005

SLIDE

Swivel Assembly

1шт.

14

87407048

SWITCH

1шт.

15

87475861

ROCKER SWITCH

1шт.

16

84276125

SWITCH

1шт.

17

84468480

KIT

Swivel Switch

1шт.

18

84276127

SERVICE KIT

Air Suspension Assy

1шт.

19

300680A1

KIT

Slide Puck

1шт.

20

87475830

SERVICE KIT

1шт.

21

143786A1

SHAFT,308.9mm L

2шт.

22

87475831

SERVICE KIT

Suspension Arm Weldment

1шт.

23

9845760

SPRING

1шт.

24

82020819

KIT

Air Spring Service

1шт.

25

86556264

HOUSING

1шт.

26

87475833

SERVICE KIT

1шт.

27

87475837

SERVICE KIT

1шт.

SEAT KIT, SHOCK ABSORBER SERVICE KIT

1шт.

28

87475834

SERVICE KIT

1шт.

SEAT KIT, AIRLINE AND FITTING KIT, IND.

1шт.

29

87475841

BEARING SET

1шт.

KIT, SEAT, BEARING AND ROLLER SERVICE

1шт.

30

87475838

SERVICE KIT

1шт.

SEAT KIT, BUMPER SERVICE KIT

1шт.

31

84425821

SERVICE KIT

1шт.

SEAT KIT, COMPRESSOR

1шт.

32

84276128

SERVICE KIT

1шт.

SEAT KIT, WIRE HARNESS, IND. BOXED SERVICE

1шт.

Выбрано товаров: 39
