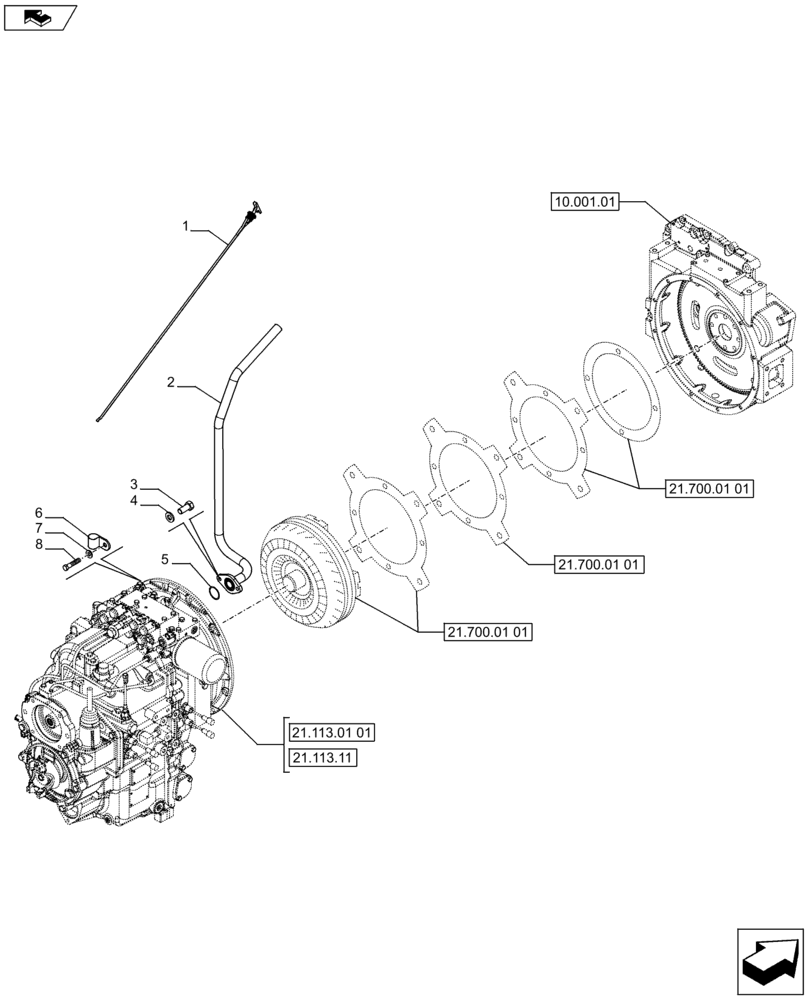

Запчасти Case 590SN (21.113.01[02]) - VAR - 423060, 423061 - POWERSHIFT S- TYPE - POWERSHIFT - DIPSTICK (21) - TRANSMISSION

1

87601345

DIPSTICK,824mm L

1шт.

2

84329368

TUBE

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

272218

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

6

D35908

CLAMP,1" Clamping pipe

1шт.

7

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

1шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.
