(21.112.0401) - VAR - 423059 - STANDARD TRANSMISSION - MOUNTING - 4WD

Запчасти Case 590SN (21.112.0401) - VAR - 423059 - STANDARD TRANSMISSION - MOUNTING - 4WD (21) - TRANSMISSION

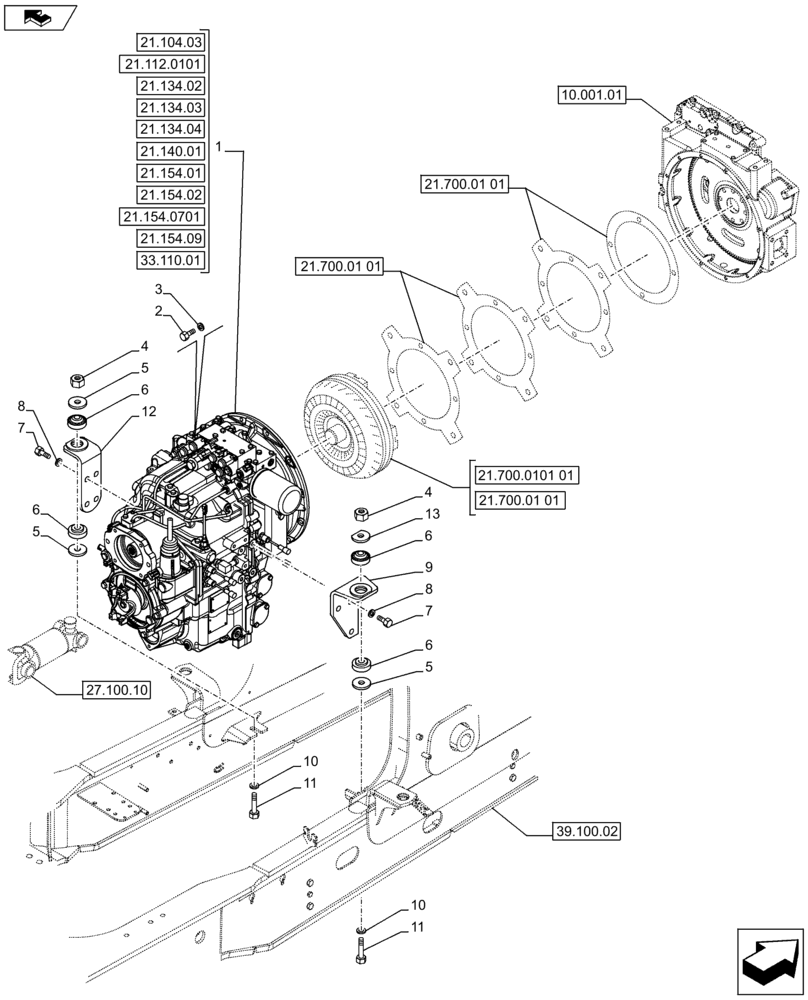

Схема запчастей Case 590SN - (21.112.0401) - VAR - 423059 - STANDARD TRANSMISSION - MOUNTING - 4WD (21) - TRANSMISSION
21.154.01
2
6
4
7
21.154.09
21.154.0701
5
21.700.01 01
21.134.03
27.100.10
home
21.154.02
6
4
7
10
11
21.140.01
21.700.01 01
11
13
6
33.110.01
8
1
21.104.03
39.100.02
8
10.001.01
12
5
5
21.134.04
6
9
10
21.112.0101
21.700.0101 01
21.700.01 01
21.134.02
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395301

TRANSMISSION

Assy

1шт.

1

87395301R

REMAN-TRANSMISSION

Reman for New PN 87395301

1шт.

1

87395301C

CORE-TRANSMISSION

Return Number

1шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

3шт.

6

84383342

MOUNT

4шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

9

84567310

BRACKET

1шт.

10

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

11

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

12

84567307

BRACKET

1шт.

13

47395114

WASHER,16.7mm ID x 76.2mm OD x 4.55m Thk, HTS

1шт.
