(21.112.04[02]) - VAR - 423058 - STANDARD TRANSMISSION - DIPSTICK - 2WD, 4WD

Запчасти Case 590SN (21.112.04[02]) - VAR - 423058 - STANDARD TRANSMISSION - DIPSTICK - 2WD, 4WD (21) - TRANSMISSION

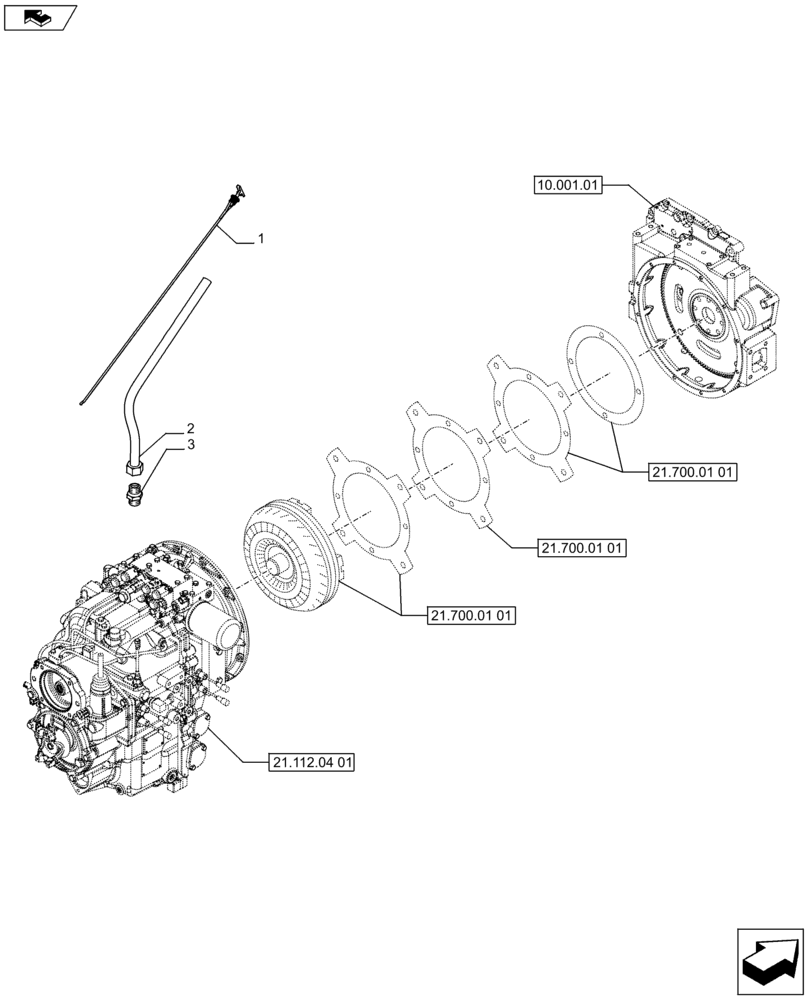

Схема запчастей Case 590SN - (21.112.04[02]) - VAR - 423058 - STANDARD TRANSMISSION - DIPSTICK - 2WD, 4WD (21) - TRANSMISSION
home
10.001.01
2
21.112.04 01
1
3
21.700.01 01
21.700.01 01
21.700.01 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601345

DIPSTICK,824mm L

1шт.

2

84329366

TUBE

1шт.

3

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.
