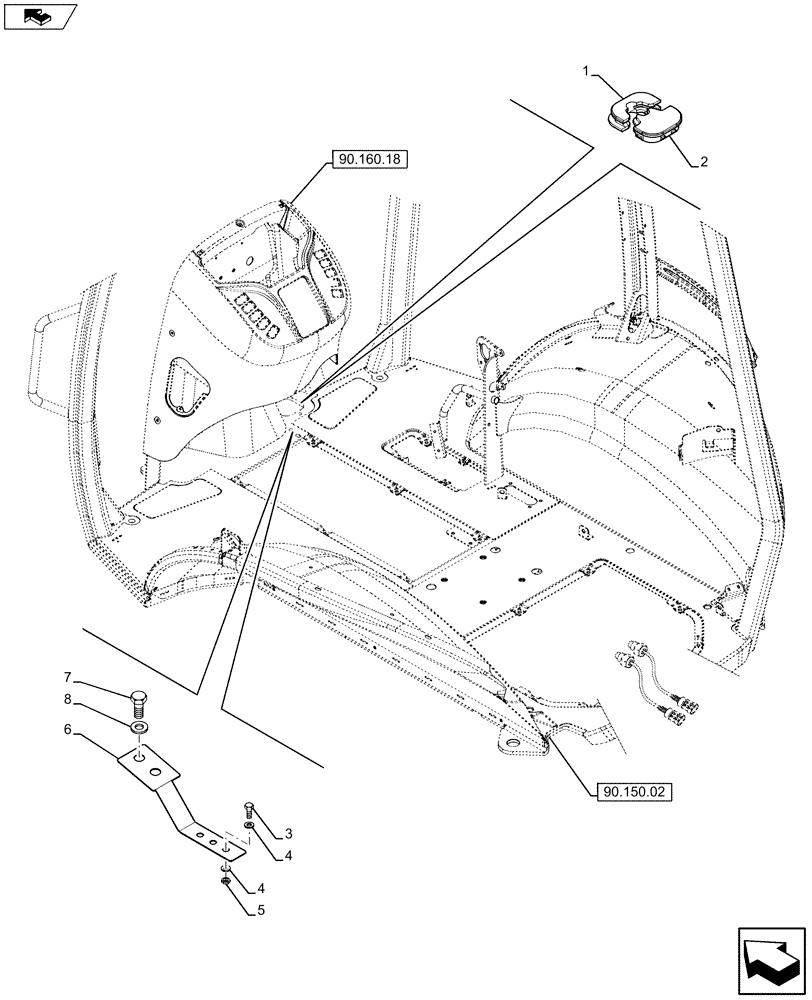

Запчасти Case 590SN (90.110.0501) - VAR - 423062 - PLATFORM, SEAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

397443A2

SEAL,110mm L

1шт.

2

397493A2

SEAL,106mm L

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

6

87712564

BRACKET

1шт.

7

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.
