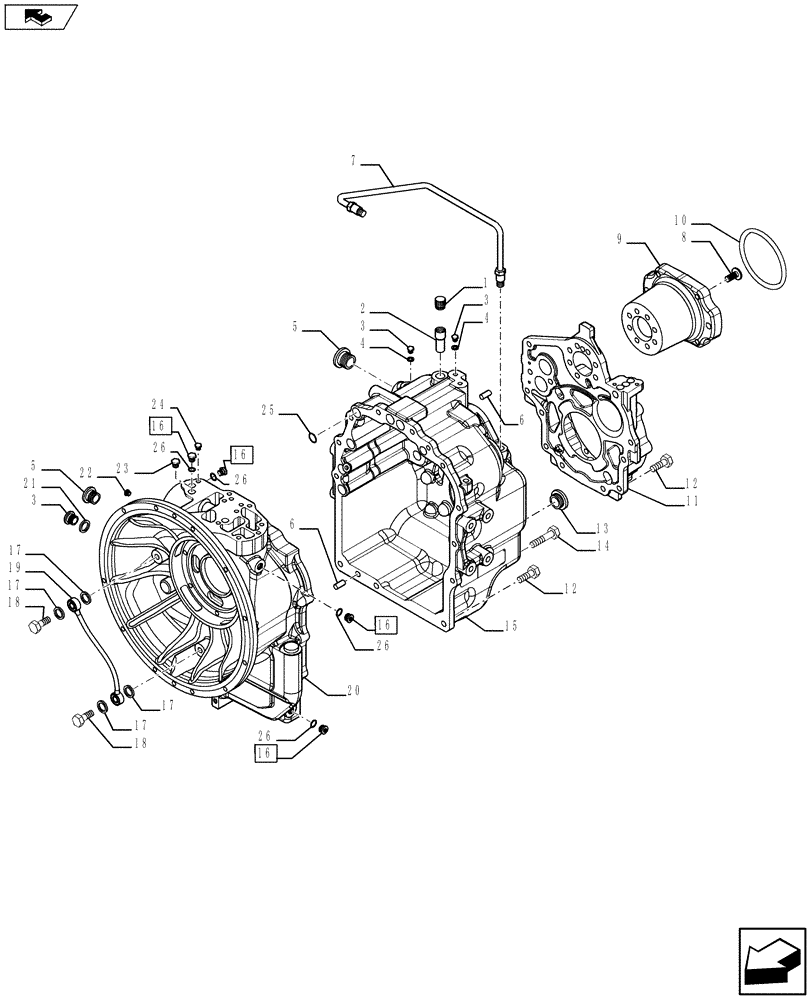

Запчасти Case 590SN (21.112.01) - VAR - 423058 - STANDARD TRANSMISSION - HOUSING - 2WD (21) - TRANSMISSION

1

1530028C1

BREATHER

1шт.

2

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

1шт.

3

181100A1

PLUG,1/8 CAS x 8

4шт.

4

934667R1

SEALING RING,M10 x 14 x 1

3шт.

5

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

6

K260177

PIN

3шт.

7

87701270

PIPE

1шт.

8

87701258

BOLT,M10 x 1.5 x 45mm L

7шт.

9

87701269

FLANGE

1шт.

10

87429982

O-RING

1шт.

11

87701257

COVER

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

17шт.

13

100557A1

PLUG, DRAIN,M30 x 2

1шт.

14

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

2шт.

15

87701255

TRANSMISSION HOUSING

1шт.

16

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 26

4шт.

17

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

4шт.

18

181179A1

BANJO BOLT

2шт.

19

181232A1

TUBE

1шт.

20

84318196

HOUSING

1шт.

21

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

1шт.

22

181101A1

PLUG,M14 x 1.5

1шт.

23

87701260

PLUG,M16 x 1.5

1шт.

24

87701779

RIVET,7mm OD

1шт.

25

181141A1

O-RING,17.12mm ID x 2.62mm Width

4шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
