Запчасти Case 590SN (88.084.16[09]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES

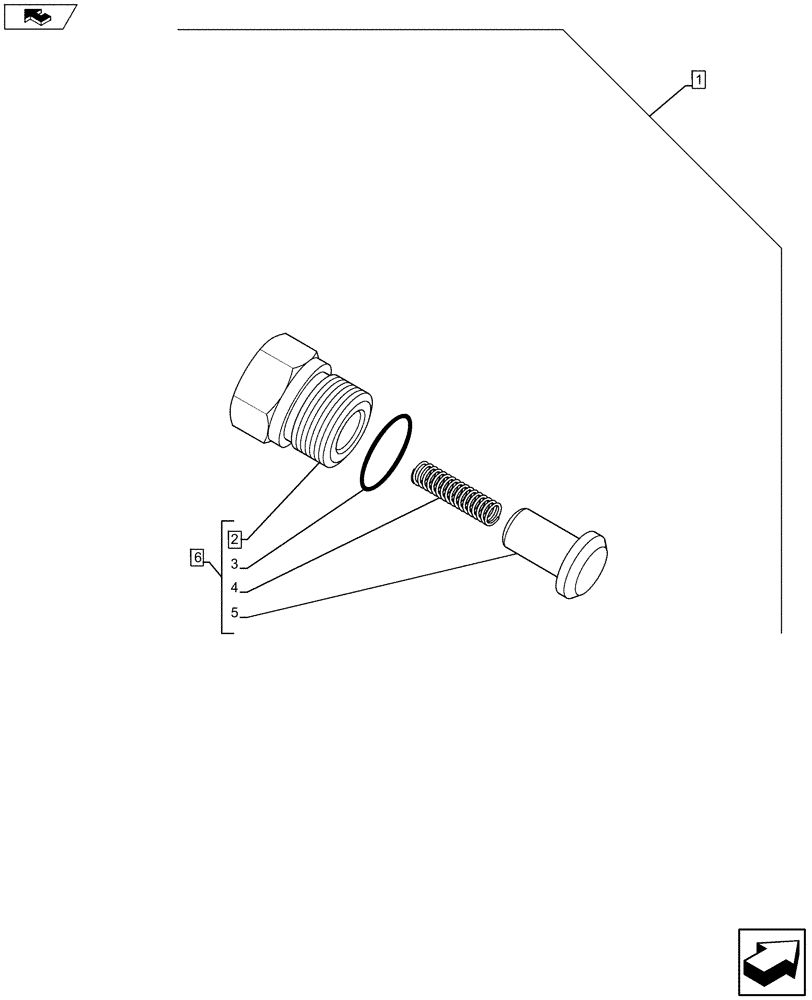

Схема запчастей Case 590SN - (88.084.16[09]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES
1
6
5
2
3
home
4

Артикул

Название

Примечание

Количество

1

84540613

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Hand Swing, Incl 2 - 6

1шт.

See Ref. 88.084.16 [01] to 88.084.16 [08], 88.084.16 [10] to 88.084.16 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87455581

PLUG,Hex, 1/16" - 12 ORB

Assy, Incl 3

1шт.

3

87455975

O-RING

1шт.

4

87455582

SPRING

1шт.

5

87455583

VALVE POPPET

1шт.

6

87426238

VALVE, CHECK

Assy, Incl 2 - 5

1шт.

Выбрано товаров: 8
