(88.084.16[08]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING

Запчасти Case 590SN (88.084.16[08]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES

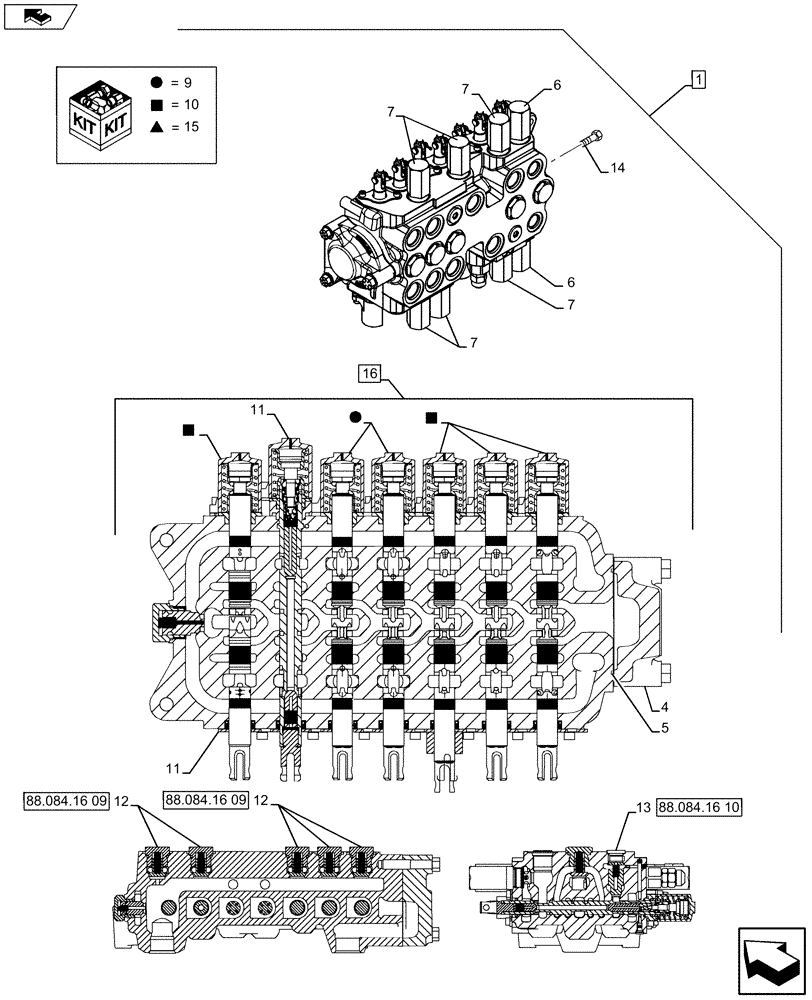

Схема запчастей Case 590SN - (88.084.16[08]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES
6
9
88.084.16 09
13
9
15
1
16
10
11
5
11
4
7
7
88.084.16 10
home
88.084.16 09
7
14
12
6
10
10
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84540613

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Hand Swing, Incl 2 - 16

1шт.

See Ref. 88.084.16 [01] to 88.084.16 [07], 88.084.16 [09] to 88.084.16 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87428491

SCREW,Hex

2шт.

3

87428492

SCREW,Hex

1шт.

4

87433030

OUTLET

1шт.

5

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

1шт.

6

84296800

VALVE PRESSURE RELIE

2шт.

7

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

Adjustable

6шт.

Set the Relief to the Setting of the One that is Being Replaced

1шт.

8

84296862

KIT

1шт.

9

84296826

SERVICE KIT

2шт.

10

84296859

KIT

4шт.

11

84315193

SEAL

7шт.

12

87426238

VALVE, CHECK

Assy

5шт.

13

87428486

VALVE, CHECK

Assy

1шт.

14

81868381

CHECK VALVE,1-1/16" - 12

1шт.

15

84296786

SEAL KIT

1шт.

16

84273243

VALVE

1шт.
