(88.084.16[07]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING

Запчасти Case 590SN (88.084.16[07]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES

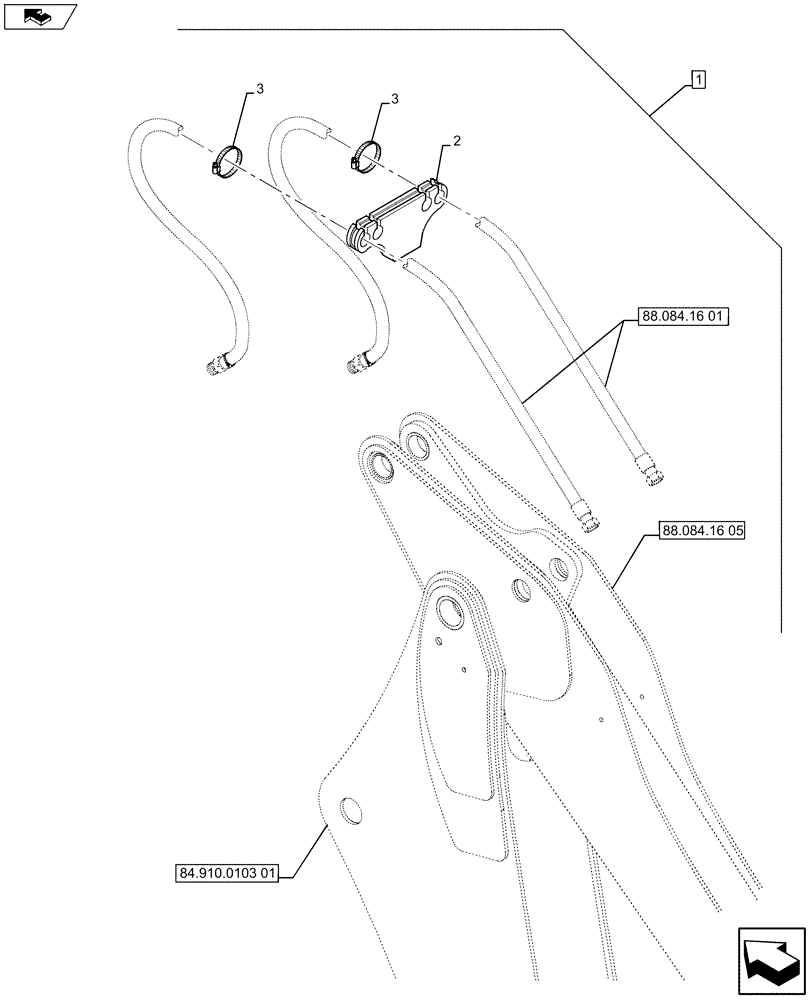

Схема запчастей Case 590SN - (88.084.16[07]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES
88.084.16 01
3
3
1
88.084.16 05
home
84.910.0103 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84540613

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Hand Swing, Incl 2 - 3

1шт.

See Ref. 88.084.16 [01] to 88.084.16 [06], 88.084.16 [08] to 88.084.16 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84360628

SUPPORT

1шт.

3

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
