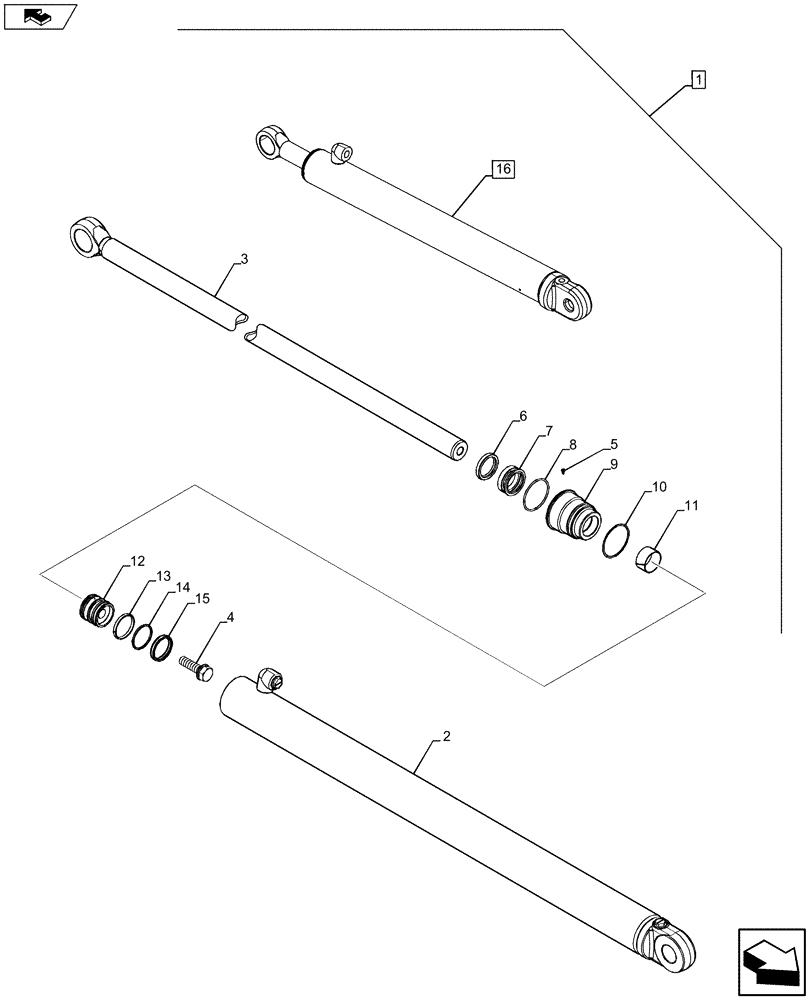

Запчасти Case 590SN (88.084.16[02]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES

1

84540613

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Hand Swing, Incl 2 - 16

1шт.

See Ref. 88.084.16 [01], 88.084.16 [03] to 88.084.16 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84182377

TUBE,76mm Bore Dia

1шт.

3

84182379

ROD,44.4mm OD x 1550.7mm L

1шт.

4

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

7

1542875C1

SEAL KIT,44.4mm Rod

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

297281A1

GLAND

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

12

G107277

PISTON

1шт.

13

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

16

84421679

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.04mm Bore, 1220mm Stroke

Assy, Incl 2 - 15

1шт.
