(88.084.15[06]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING

Запчасти Case 590SN (88.084.15[06]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

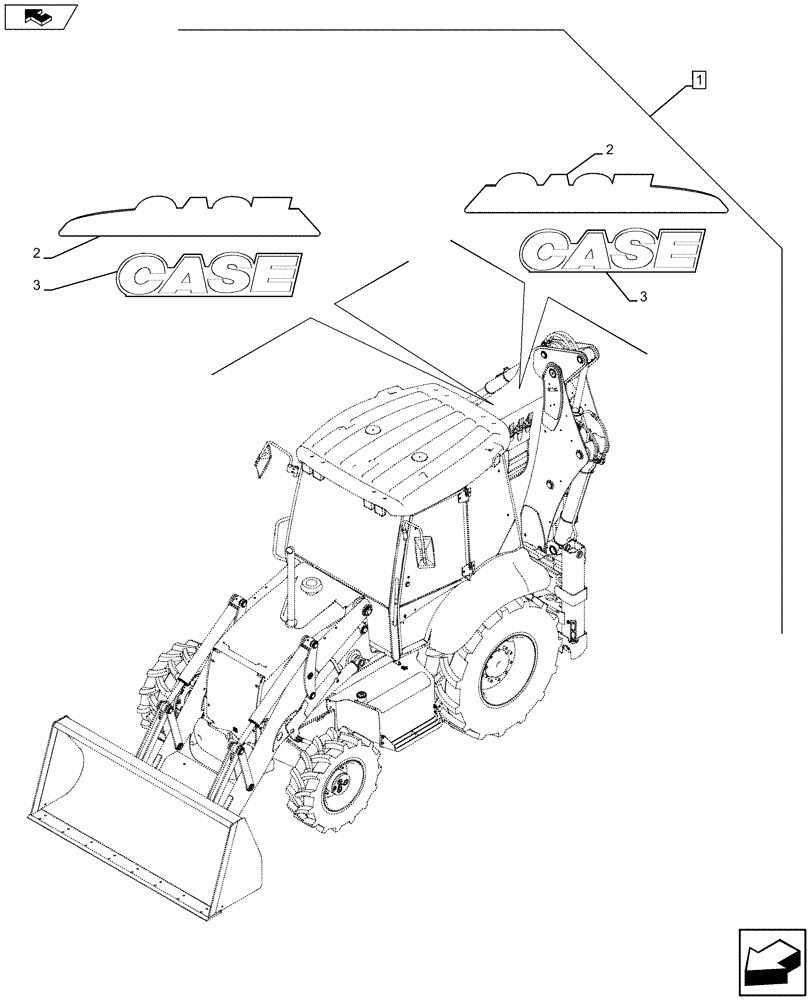

Схема запчастей Case 590SN - (88.084.15[06]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES
home
1
2
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 3

1шт.

See Ref. 88.084.15 [01] to 88.084.15 [05], 88.084.15 [07] to 88.084.15 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84495411

DECAL

1шт.

3

84495419

DECAL,834mm x 212mm H

1шт.
