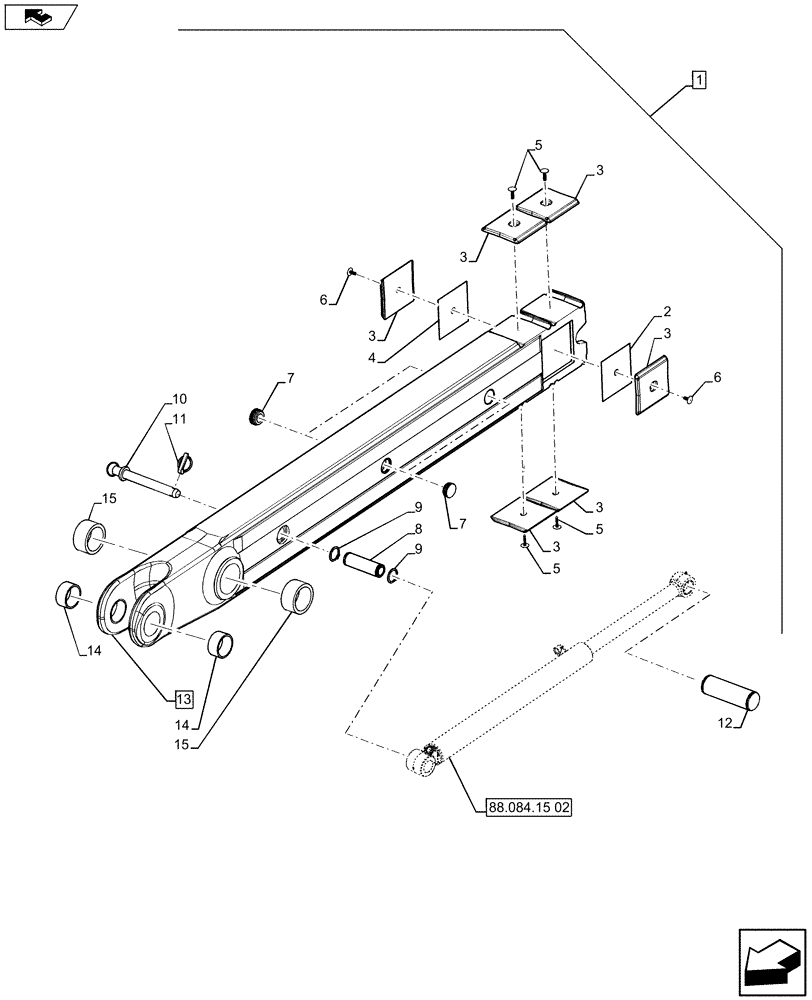

Запчасти Case 590SN (88.084.15[04]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 15

1шт.

See Ref. 88.084.15 [01] to 88.084.15 [03], 88.084.15 [05] to 88.084.15 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

0.8 mm Thick

1шт.

3

451384A1

WEAR PLATE

6шт.

4

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1.6 mm Thick

1шт.

5

183443A1

PIN,6.6mm OD x 38.5mm L

4шт.

6

183509A1

PIN,8.3mm OD x 22mm L

2шт.

7

D133865

PLUG

4шт.

8

300588A1

PIN,40mm OD x 136mm L

1шт.

9

800-44040

SNAP RING,M40, Ext

2шт.

10

D140247

LOCK PIN,25.4mm OD x 232.6mm L

1шт.

11

A33509

PIN,11.18mm OD

1шт.

12

84225660

PIN,59.9mm OD x 186mm L

1шт.

13

84298779

DIPPER

Assy, Incl 14 - 15

1шт.

14

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

2шт.

15

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

2шт.
