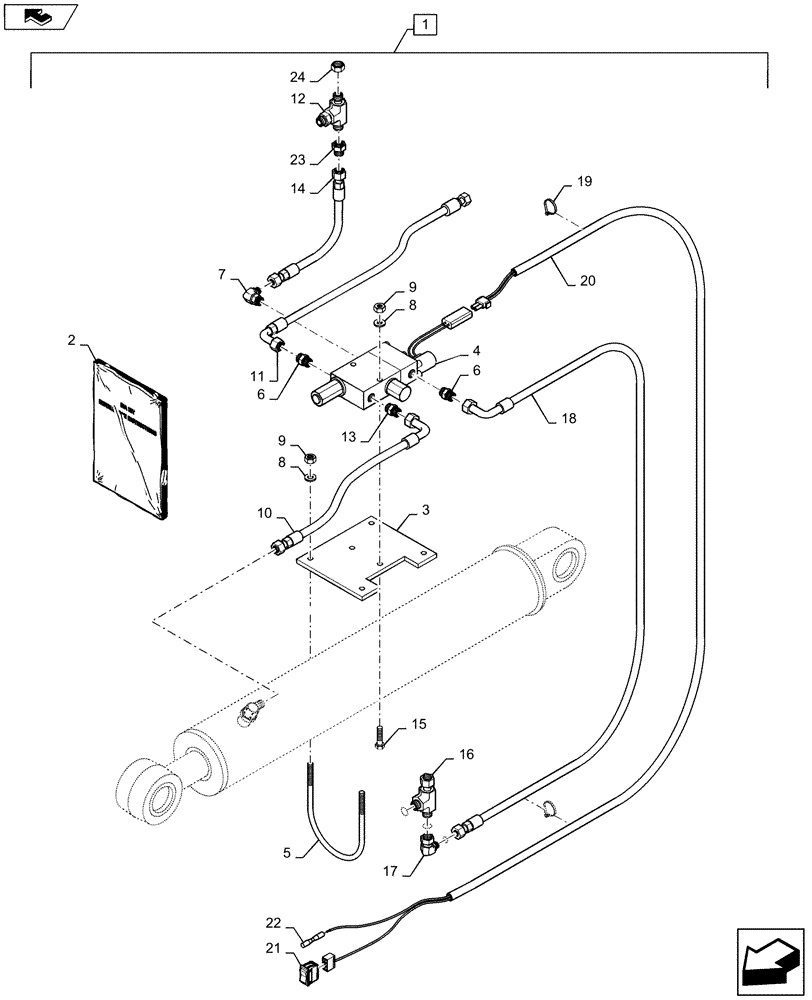

Запчасти Case 590SN (88.035.75) - DIA KIT, BOOM LOCK, 590SN (88) - ACCESSORIES

1

84376271

KIT

Boom Lock, 590, Incl 2 - 24

1шт.

2

84376512

INSTRUCTION

Short, Boom Lock

1шт.

3

84314682

PLATE

Valve Mounting

1шт.

4

84312313

VALVE

Boom Lock

1шт.

5

D150053

BOLT

2шт.

6

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Jump

2шт.

7

87016877

ELBOW,90 Degree, 13/16"-16 x 9/16"-18, Adj, ORFS

O-Ring Boss

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

9

231-1446

NUT,3/8" - 16, Gr 5

6шт.

10

84376465

HYD TUBE

Assembly, Boom Locking Valve

1шт.

11

84376466

HYD TUBE

Assembly, Boom Locking Valve

1шт.

12

84375320

BRANCH TEE

O-Ring Face Seal

1шт.

13

87672176

HYD CONNECTOR

O-Ring Face Seal

1шт.

14

84376469

HOSE ASSY.,8mm ID x 446mm L

Boom Locking Valve

1шт.

15

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

16

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Union Tee, O-Ring Face Seal Swivel Run

1шт.

17

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

18

84376471

HOSE ASSY.,10mm ID x 3961mm L

Hydraulics Boom Lock - Pilot

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

20

84342283

HARNESS

Jumper, Boom Lock

1шт.

21

400016A1

SWITCH

Rocker boom Lock

1шт.

22

84292428

WIRE CONNECTOR

American Gage Red Butt Seal

1шт.

23

87016874

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

24

703-905

TUBE NUT,1-7/16" - 12

1шт.
