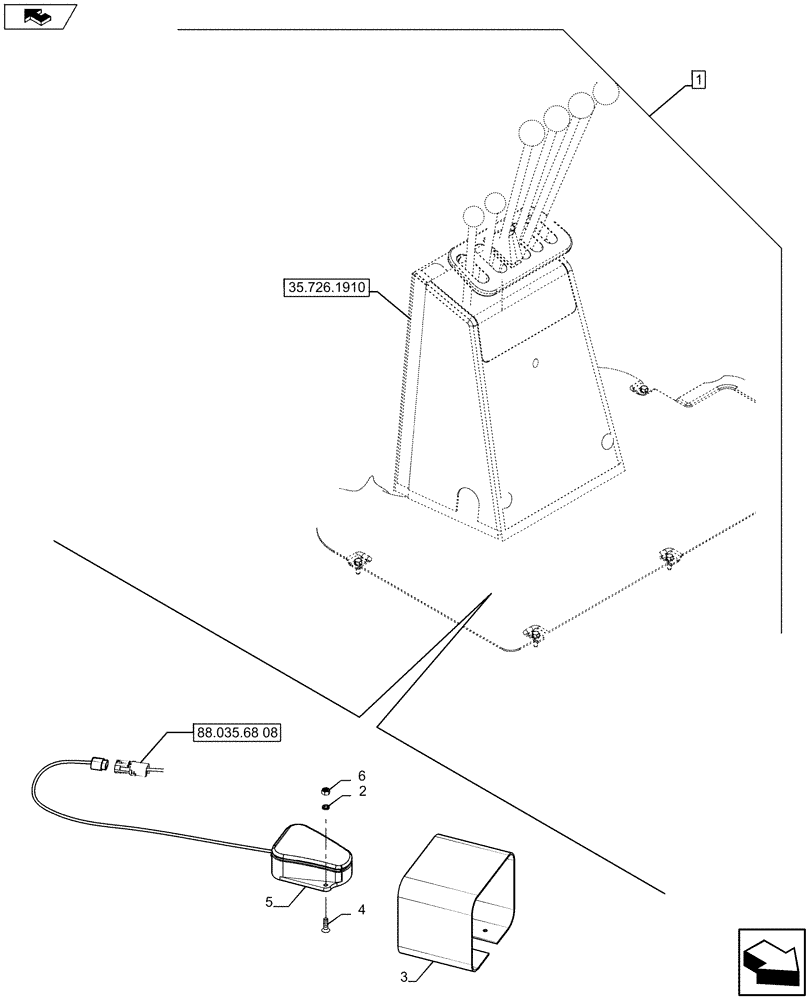

Запчасти Case 590SN (88.035.68[09]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES

1

84546985

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE, Incl 2 - 6

1шт.

See Ref. 88.035.68 [01] to 88.035.68 [08], 88.035.68 [10] to 88.035.68 [13]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

892-11005

LOCK WASHER,M5

2шт.

3

300030A1

COVER

1шт.

4

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

2шт.

5

137219A1

SWITCH

Foot, Auxiliary Hydraulics

1шт.

6

824-1405

NUT,M5, Cl 5

2шт.
