(88.035.65[07]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER

Запчасти Case 590SN (88.035.65[07]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES

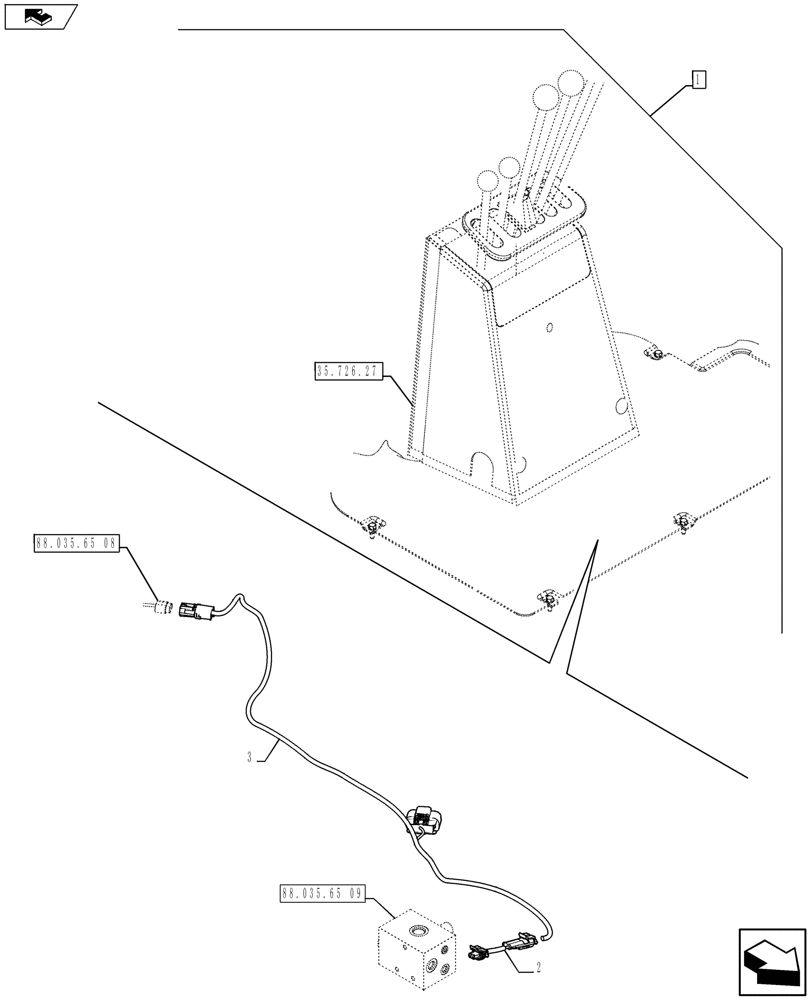

Схема запчастей Case 590SN - (88.035.65[07]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES
88.035.65 09
2
88.035.65 08
home
1
a
3
35.726.27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546990

CONSTRUCTION DIA

Uni Dir. Mechanical Control STD Dipper, Incl 2 - 3

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.65 [01] to 88.035.65 [06], 88.035.65 [08] to 88.035.65 [09]

1шт.

2

84386573

WIRE HARNESS

1шт.

3

84292390

WIRE HARNESS

1шт.
