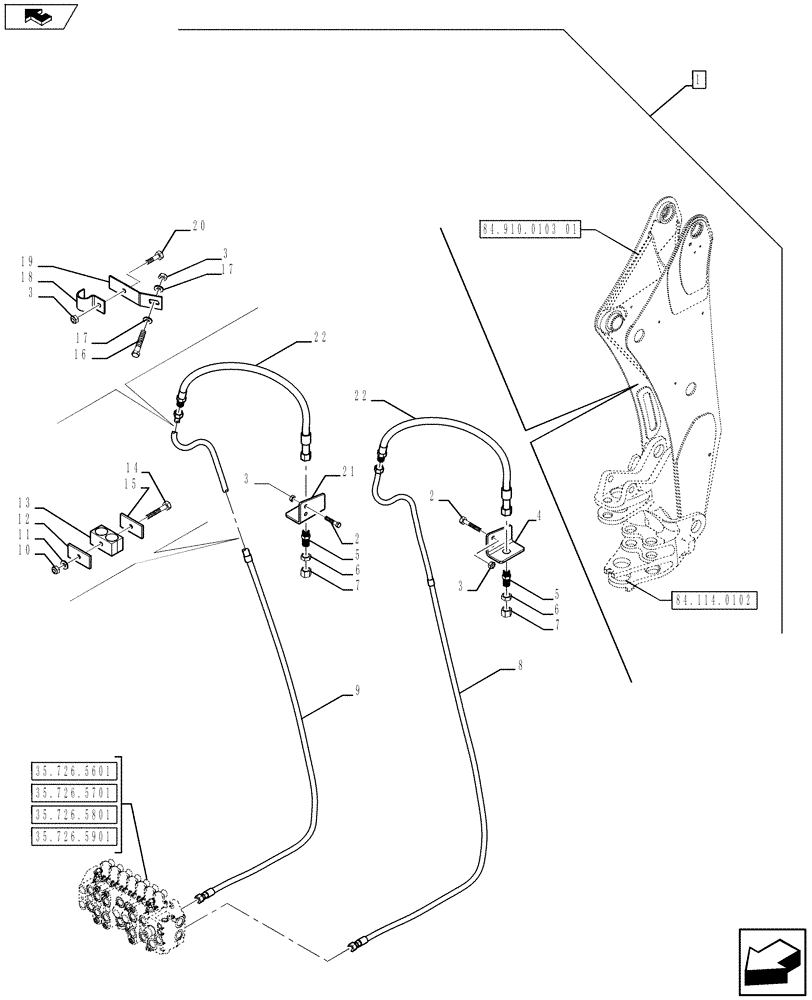

Запчасти Case 590SN (88.035.65[02]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES

1

84546990

CONSTRUCTION DIA

Uni Dir. Mechanical Control, STD Dipper, Incl 2 - 22

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.65 [01], 88.035.65 [03] to 88.035.65 [09]

1шт.

2

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

3

412141

NUT,M10 x 1.5, Cl 8

8шт.

4

84305006

BRACKET

1шт.

5

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

6

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

7

201-907

CAP,1-3/16" - 12 ORFS

2шт.

8

84280514

HYD TUBE,19mm ID x 2800mm L

1шт.

9

84280515

HYD TUBE,19mm ID x 2851mm L

1шт.

10

412250

NUT,M8 x 1.25, Cl 8

2шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

12

84283495

SECURING STRAP

2шт.

13

87000146

CLAMP

2шт.

14

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

15

84342644

PLATE

2шт.

16

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

17

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

18

242459A1

SHIN

2шт.

19

84266298

PLATE

2шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

21

84305054

BRACKET

1шт.

22

84321969

HOSE,19mm ID x 969mm L

2шт.
