Запчасти Case 590SN (88.035.65[01]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES

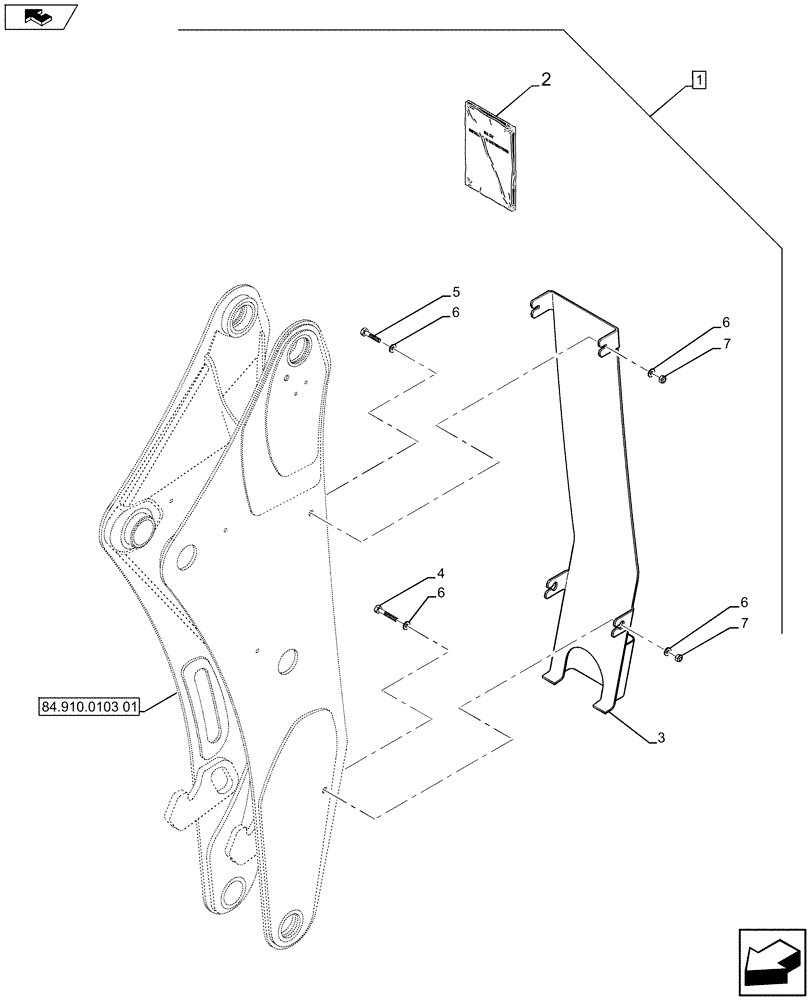

Схема запчастей Case 590SN - (88.035.65[01]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES
1
6
7
home
84.910.0103 01
6
2
7
4
6
3
5
6

Артикул

Название

Примечание

Количество

1

84546990

CONSTRUCTION DIA

Uni Dir Mechanical Control STD Dipper, Incl 2 - 7

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.65 [02] to 88.035.65 [09]

1шт.

2

84546991

INSTRUCTION

1шт.

3

84260388

GUARD

1шт.

4

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

2шт.

5

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

Выбрано товаров: 9
