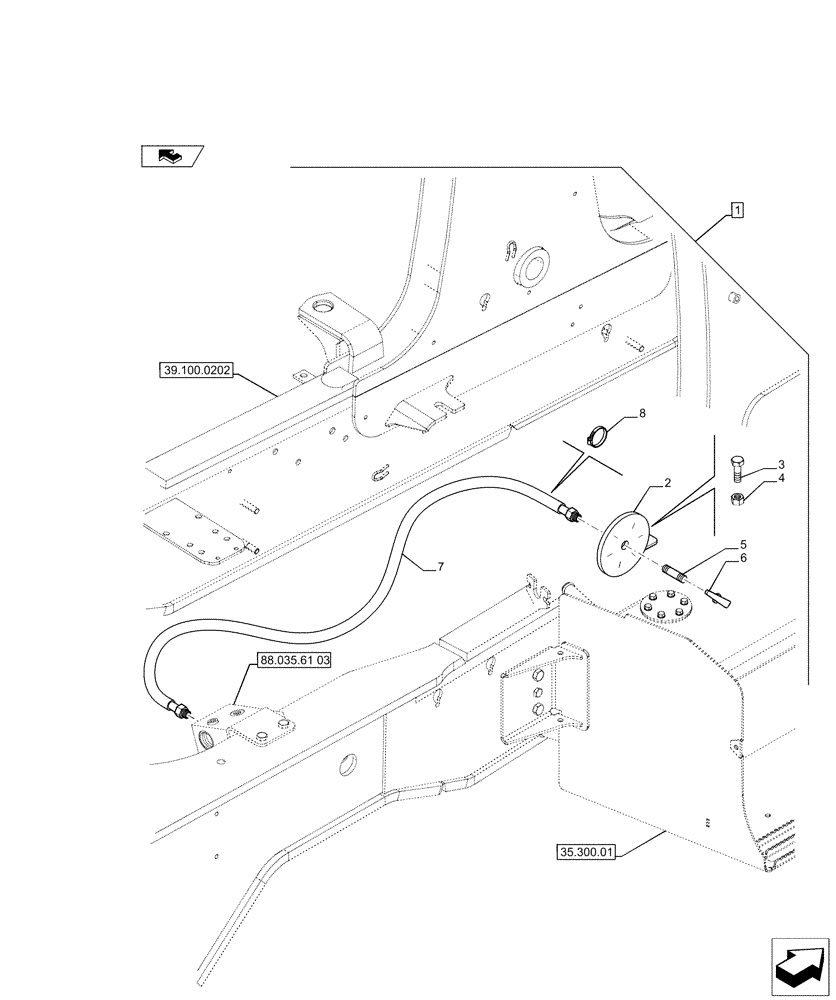

Запчасти Case 590SN (88.035.61[11]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES

1

84546983

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MC, STD, Incl 2 - 8

1шт.

See Ref. 88.035.61 [01] to 88.035.61 [10], 88.035.60 [12] to 88.035.61 [13]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84391738

BRACKET

1шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

4

412141

NUT,M10 x 1.5, Cl 8

2шт.

5

13804521

SET SCREW,M8 x 20, Cl 8.8

1шт.

6

84367646

KNOB

1шт.

7

84377870

CABLE,1630mm L

1шт.

8

D138055

CLAMP

2шт.
