Запчасти Case 590SN (88.035.61[09]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES

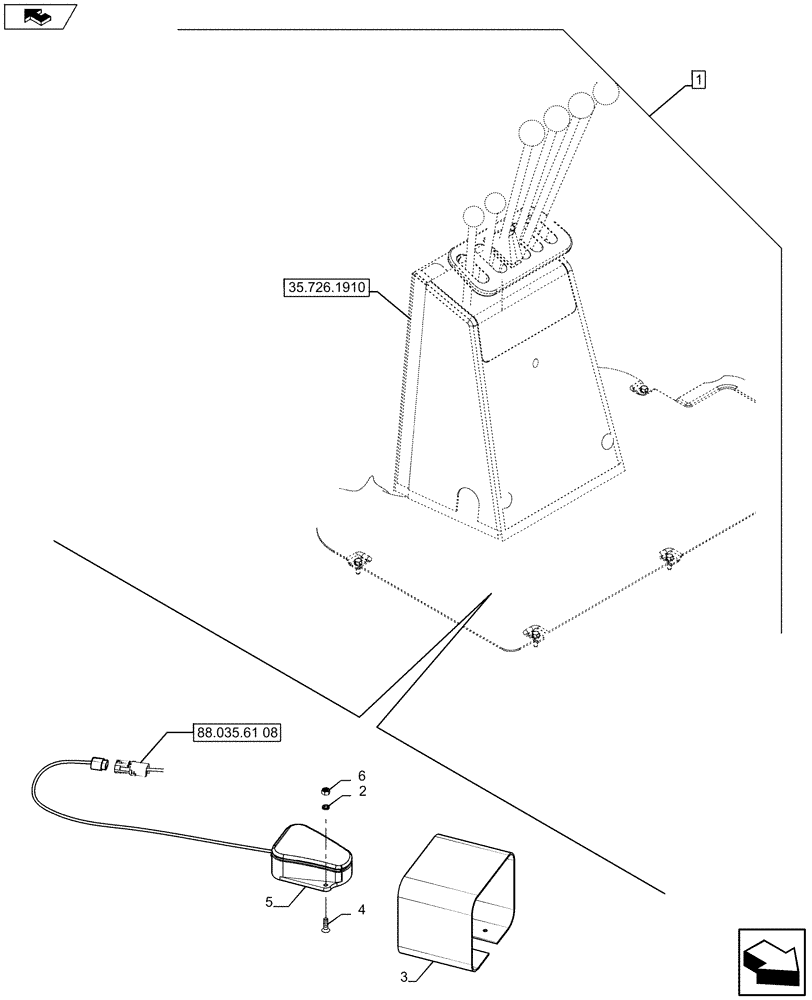

Схема запчастей Case 590SN - (88.035.61[09]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES
2
1
35.726.1910
3
4
6
home
5
88.035.61 08

Артикул

Название

Примечание

Количество

1

84546983

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MC, STD, Incl 2 - 6

1шт.

See Ref. 88.035.61 [01] to 88.035.61 [08], 88.035.61 [10] to 88.035.61 [13]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

892-11005

LOCK WASHER,M5

2шт.

3

300030A1

COVER

1шт.

4

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

2шт.

5

137219A1

SWITCH

Foot, Auxiliary Hydraulics

1шт.

6

824-1405

NUT,M5, Cl 5

2шт.

Выбрано товаров: 8
