(88.035.61[05]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD

Запчасти Case 590SN (88.035.61[05]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES

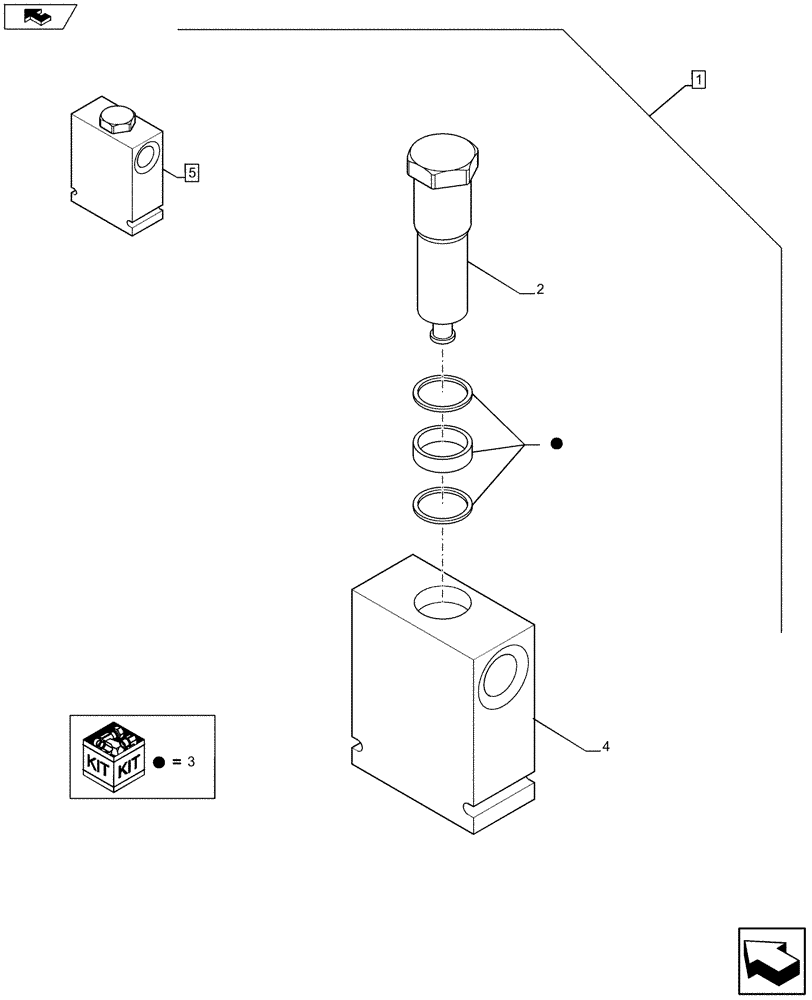

Схема запчастей Case 590SN - (88.035.61[05]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES
home
4
3
1
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546983

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MC, STD, Incl 2 - 5

1шт.

See Ref. 88.035.61 [01] to 88.035.61 [04], 88.035.61 [06] to 88.035.61 [13]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84422094

CHECK VALVE

1шт.

3

84422097

SERVICE KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

5

84422084

CHECK VALVE

Assy, Incl 2 - 4

1шт.
