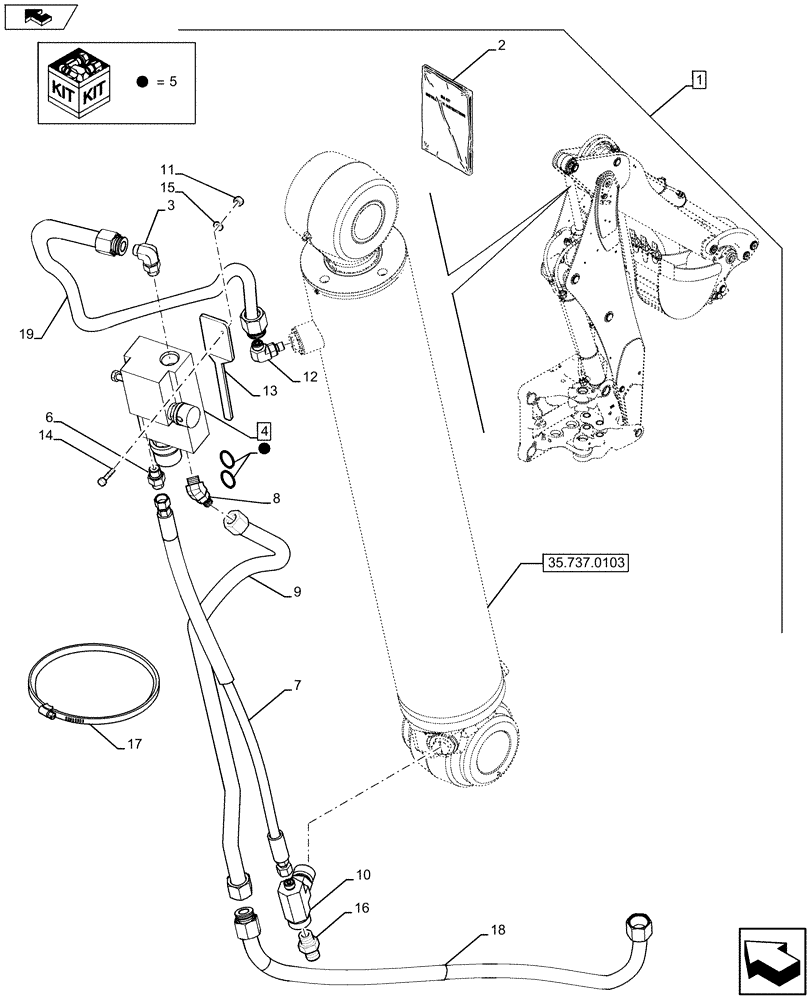

Запчасти Case 590SN (88.035.53) - DIA KIT, DIPPER LOCK VALVE (88) - ACCESSORIES

1

84588435

CONSTRUCTION DIA

Dipper Lock Valve, Incl 2 - 19

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84588447

INSTRUCTION

1шт.

3

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

4

87353314

SAFETY VALVE

Assy, Incl 5

1шт.

5

85820913

SEAL KIT

1шт.

6

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

7

84485660

HYDRAULIC HOSE,6.3mm ID x 840mm L

1шт.

8

84401339

45 ELBOW

1шт.

9

84485658

HYD TUBE

1шт.

10

84257031

FITTING,9/16-18 ORFS x 3/16-12 ORFS x 1/16-12 ORB

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

1шт.

12

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

1шт.

13

84558829

MOUNTING PLATE

1шт.

14

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

15

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

16

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

1шт.

17

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

1шт.

18

84574759

HYDRAULIC HOSE,16mm ID x 2325mm L

1шт.

19

84485659

HYD TUBE

1шт.
