Запчасти Case 590SN (88.035.44[07]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES

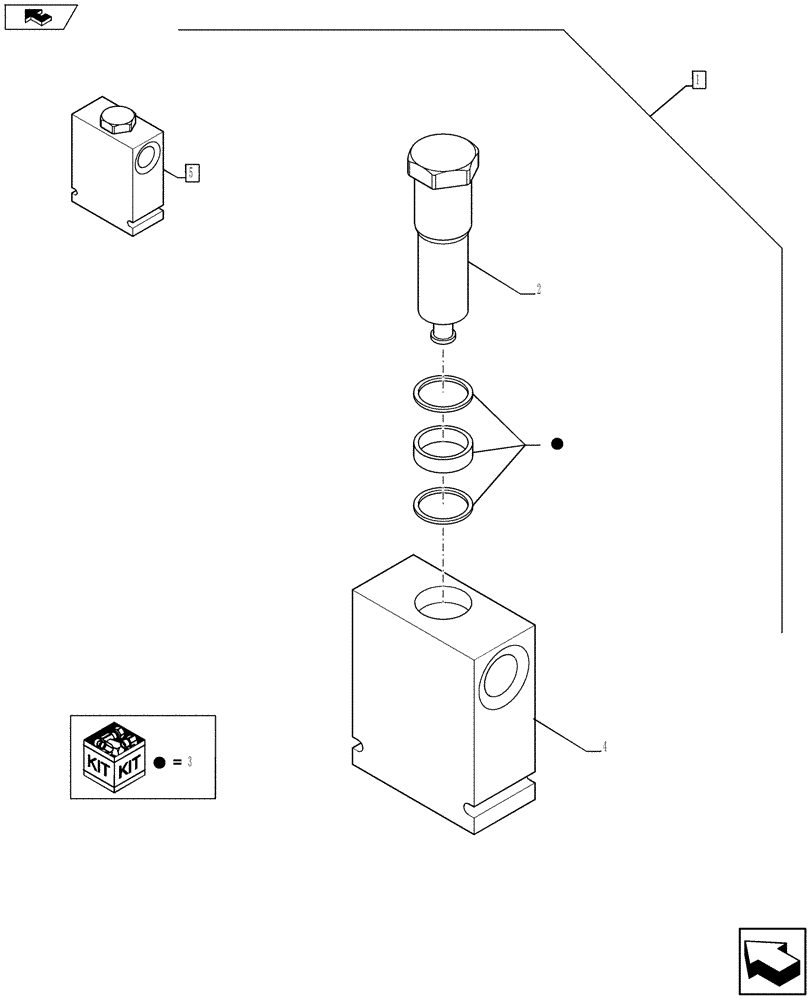

Схема запчастей Case 590SN - (88.035.44[07]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES
3
3
5
4
2
1
home

Артикул

Название

Примечание

Количество

1

47360534

CONSTRUCTION DIA

NO AUX TO COMBO, STANDARD, PILOT CONTROLS, Incl 2 - 5

1шт.

See Ref. 88.035.44 [01] to 88.035.44 [06], 88.035.44 [08] to 88.035.44 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84422094

CHECK VALVE

1шт.

3

84422097

SERVICE KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

5

84422084

CHECK VALVE

Assy, Incl 2 - 4

1шт.

Выбрано товаров: 7
