(88.035.41[10]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS

Запчасти Case 590SN (88.035.41[10]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

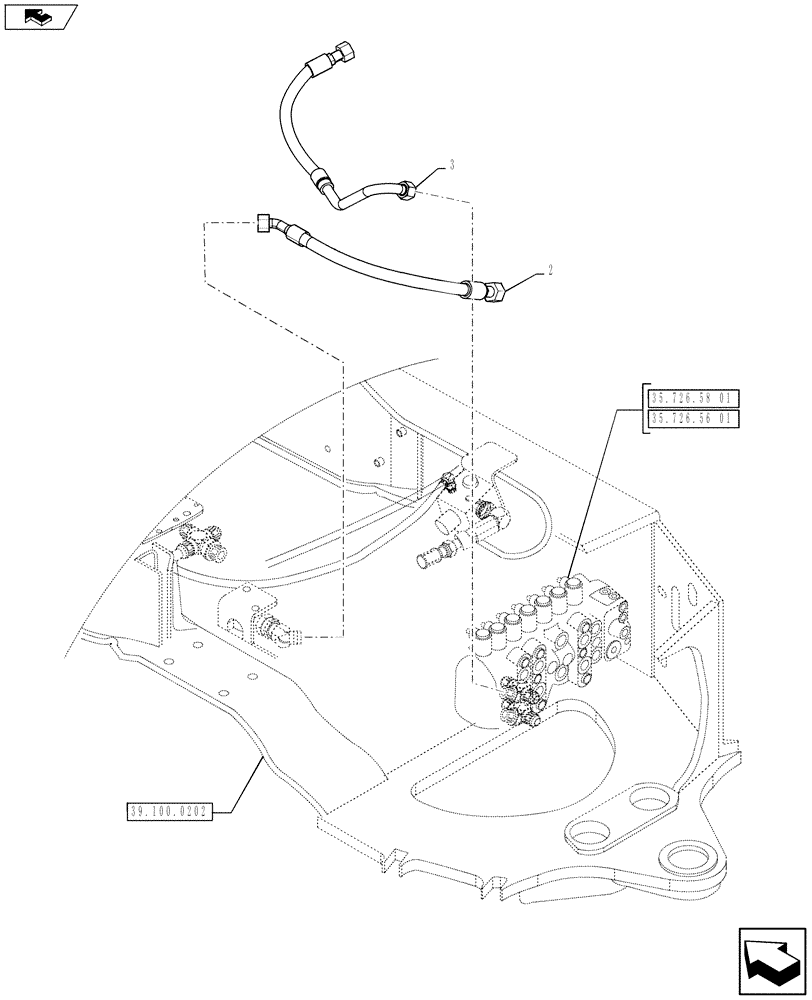

Схема запчастей Case 590SN - (88.035.41[10]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
3
39.100.0202
35.726.58 01
home
2
35.726.56 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47360027

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 5

1шт.

See Ref. 88.035.41 [01] to 88.035.41 [10]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

1шт.

3

84292393

WIRE HARNESS

1шт.

4

84241093

SWITCH

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

Выбрано товаров: 7
