(88.035.41[09]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS

Запчасти Case 590SN (88.035.41[09]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

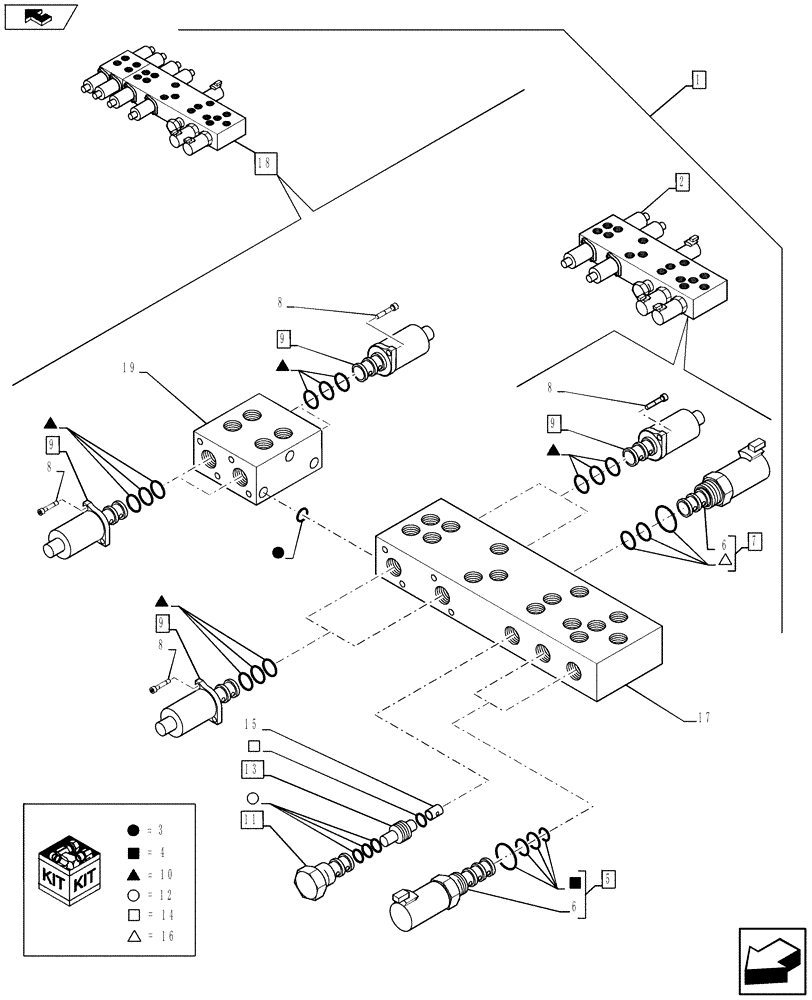

Схема запчастей Case 590SN - (88.035.41[09]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
10
2
10
17
9
12
15
8
13
8
3
11
18
1
4
8
5
6
7
10
home
3
16
9
16
8
9
14
12
4
9
10
6
19
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47360027

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 19

1шт.

See Ref. 88.035.41 [01] to 88.035.41 [08], 88.035.41 [10] to 88.035.41 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

85828015

BLOCK

Assy, Incl 3 - 17

1шт.

3

85827999

SEAL KIT

1шт.

4

85828002

SEAL KIT

1шт.

5

85827996

SOLENOID VALVE,2 Section

Assy, Incl 4, 6 (q.ty 2)

2шт.

6

85827995

COIL

1шт.

7

85827994

SOLENOID VALVE

Assy, Incl 6, 16

1шт.

8

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

16шт.

9

85827993

SOLENOID VALVE

Assy, Incl 10

8шт.

10

85828000

SEAL KIT

1шт.

11

85827997

VALVE

Assy, Incl 12

1шт.

12

85828001

SEAL KIT

1шт.

13

85827992

CHECK VALVE

Assy, Incl 14

1шт.

14

85828003

O-RING,1mm Thk x 9mm ID

1шт.

15

85828005

ORIFICE

1шт.

16

85827998

SEAL KIT

1шт.

17

85828013

BLOCK

1шт.

18

NSS

NOT SOLD SEPARAT

Block, Incl in 19

1шт.

19

87434621

CONTROL VALVE

Assy, Incl 2 -18

1шт.
