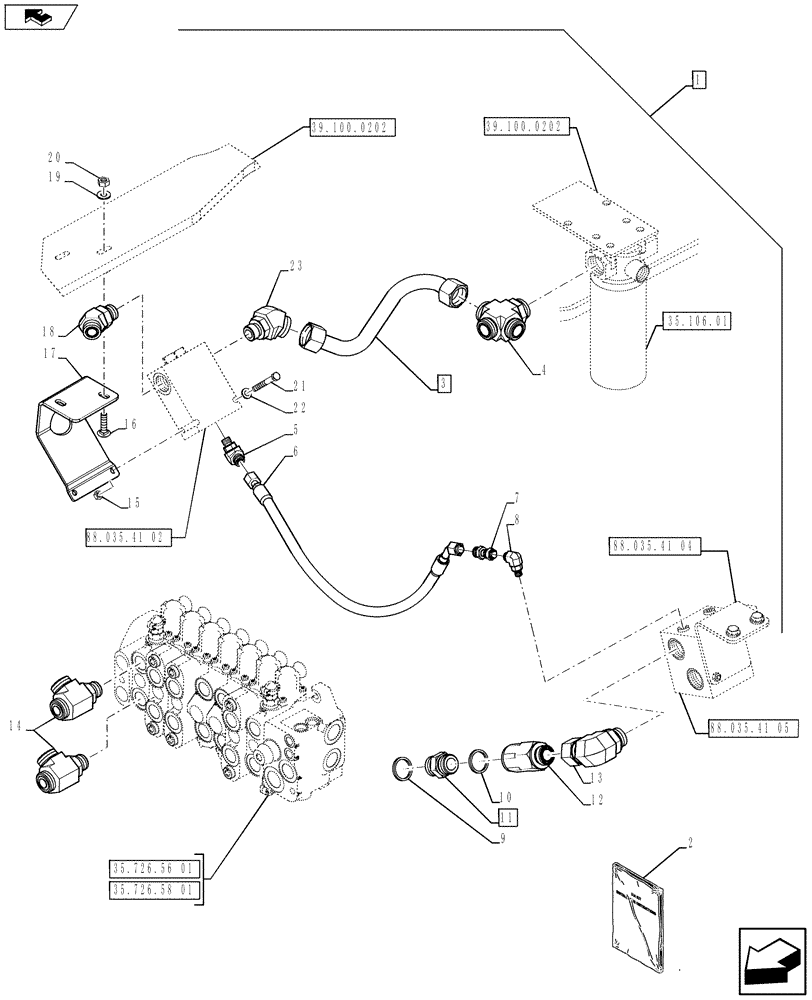

Запчасти Case 590SN (88.035.41[01]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

1

47360027

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 25

1шт.

See Ref. 88.035.41 [02] to 88.035.41 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47360532

INSTRUCTION

1шт.

3

84524281

HYD TUBE

1шт.

4

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

1шт.

5

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

6

84258749

HOSE ASSY.,10mm ID x 645mm L

1шт.

7

84395081

ADAPTER

1шт.

8

84394685

ELBOW,9/16"-18 UNF-2A x 1/8"-28 GAS

1шт.

9

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

11

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Assy, Incl 9 - 10

1шт.

12

84256601

CHECK VALVE

1шт.

13

84262694

90 ELBOW,1-7/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

14

87493307

RUN TEE

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

2шт.

16

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

17

84259186

BRACKET

1шт.

18

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

Assy, Incl 26 - 28

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

20

100016

NUT,M10 x 1.5, Cl 8

2шт.

21

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

23

87302733

HYD CONNECTOR

1шт.

24

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 25

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
