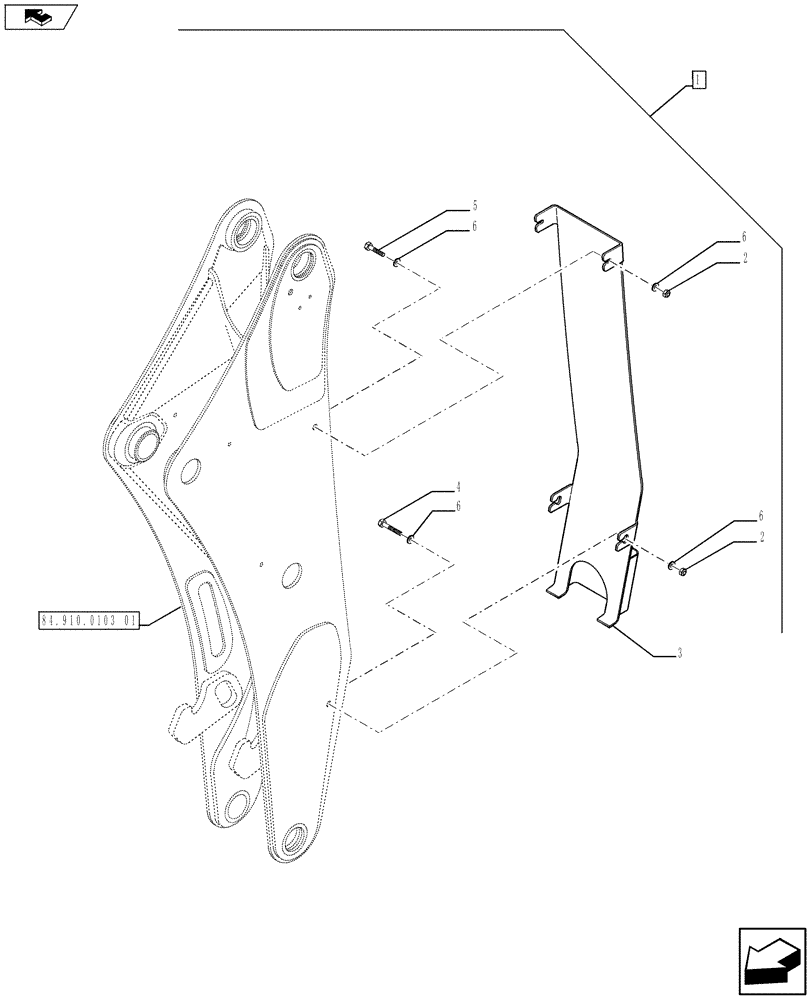

Запчасти Case 590SN (88.035.40[06]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

1

47359953

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 6

1шт.

See Ref. 88.035.40 [01] to 88.035.40 [05], 88.035.40 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

829-1412

NUT,M12, Cl 10.9

4шт.

3

84260388

GUARD

1шт.

4

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

2шт.

5

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.
