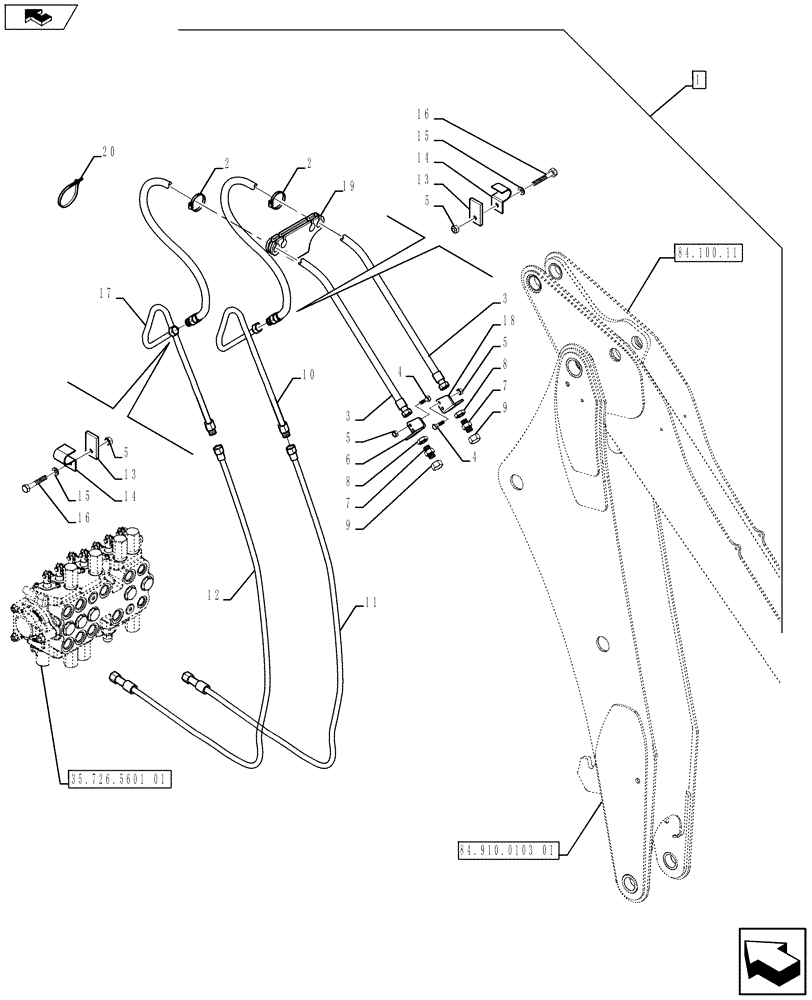

Запчасти Case 590SN (88.035.40[05]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

1

47359953

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 19

1шт.

See Ref. 88.035.40 [01] to 88.035.40 [04], 88.035.40 [06] to 88.035.40 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

3

84299653

HOSE ASSY.,19mm ID x 2030mm L

2шт.

4

412141

NUT,M10 x 1.5, Cl 8

6шт.

5

84305006

BRACKET

1шт.

6

412141

NUT,M10 x 1.5, Cl 8

6шт.

7

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

8

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

9

201-907

CAP,1-3/16" - 12 ORFS

2шт.

10

84343059

TUBE

1шт.

11

84343947

HOSE,19mm ID x 2800mm L

1шт.

12

84343946

HOSE,19mm ID x 2795mm L

1шт.

13

84299978

PLATE

2шт.

14

242459A1

SHIN

2шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

16

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

17

84343077

TUBE

1шт.

18

84305054

BRACKET

1шт.

19

84359766

SUPPORT

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
