Запчасти Case 590SN (88.035.40[01]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

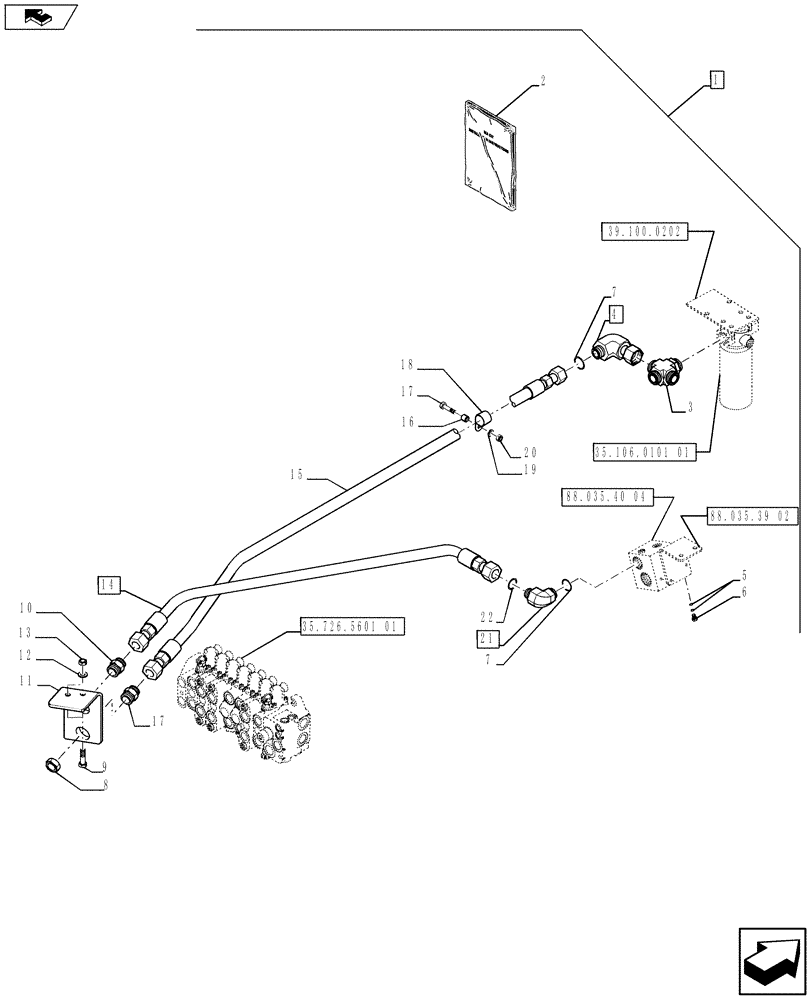

Схема запчастей Case 590SN - (88.035.40[01]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
1
5
11
2
12
10
15
19
3
17
88.035.40 04
7
6
39.100.0202
22
8
21
13
7
9
17
14
18
20
35.106.0101 01
4
88.035.39 02
home
16
35.726.5601 01

Артикул

Название

Примечание

Количество

1

47359953

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 22

1шт.

See Ref. 88.035.40 [02] to 88.035.40 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47357896

INSTRUCTION

1шт.

3

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

1шт.

4

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

Assy, Incl 7

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6

76349

PLUG,9/16" - 18 ORB

Assy, Incl 5

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

8

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

9

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

10

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

2шт.

11

84407250

BRACKET, SUPPORTING

1шт.

12

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

13

86500689

NUT,M10 x 1.5, Cl 10

2шт.

14

84407248

HYD TUBE

1шт.

15

84407245

HYDRAULIC HOSE,19mm ID x 953mm L

1шт.

16

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

17

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

18

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

21

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Assy, Incl 7, 22

1шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 24
