(88.035.37[06]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS

Запчасти Case 590SN (88.035.37[06]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES

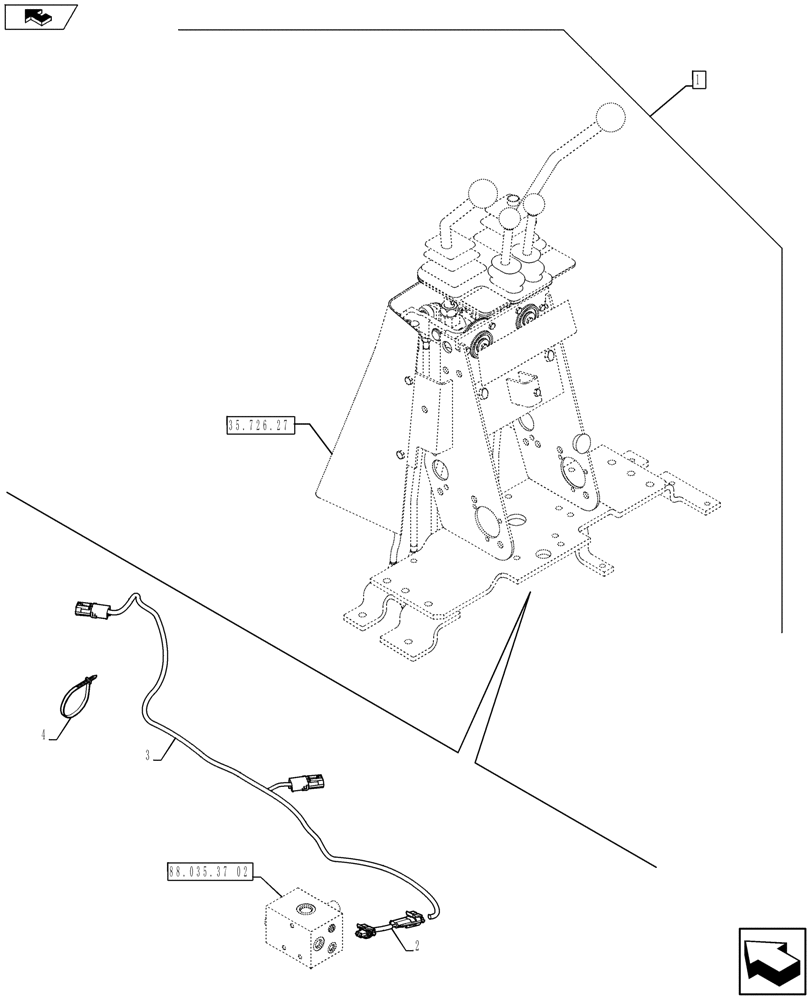

Схема запчастей Case 590SN - (88.035.37[06]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES
1
4
2
home
35.726.27
88.035.37 02
a
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47357827

CONSTRUCTION DIA

UNI-AUX STANDARD PILOT CONTROLS, Incl 2 - 4

1шт.

See Ref. 88.035.37 [01] to 88.035.37 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292392

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
