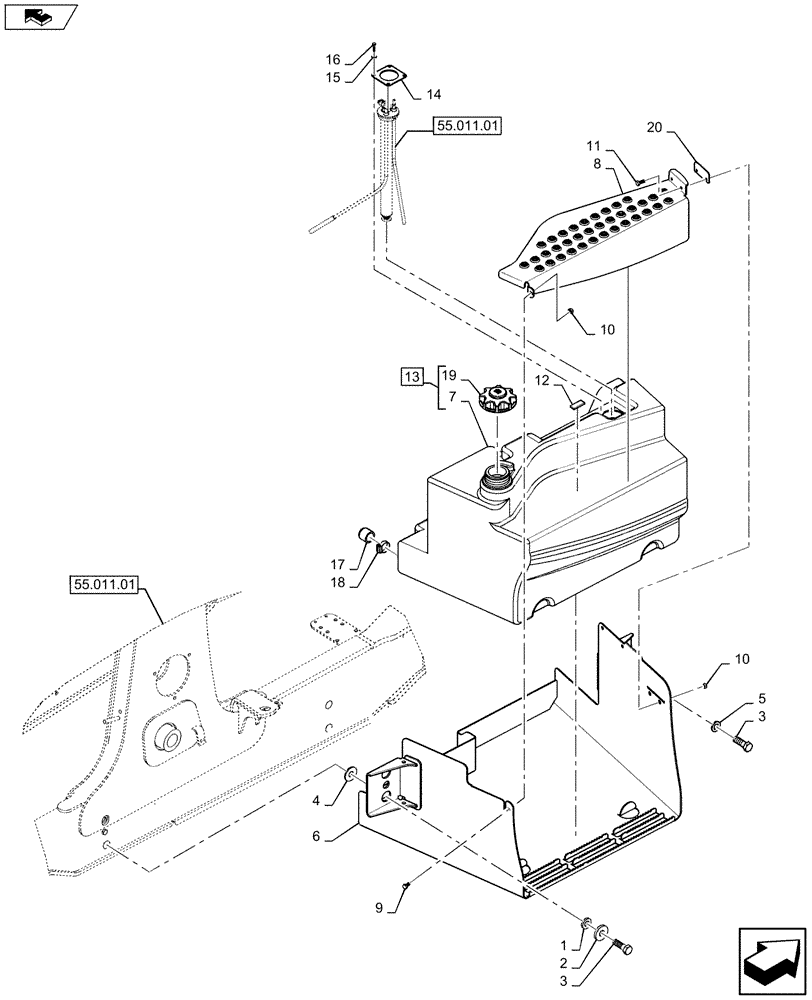

Запчасти Case 590SN (10.216.01) - FUEL LINES, RESERVOIR (10) - ENGINE

1

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Assy, Incl 2 - 20

2шт.

2

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

4

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

5

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

6

84371937

PLATE

1шт.

7

84512583

FUEL TANK

1шт.

8

84326034

PLATE

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

414092A1

SEALING STRIP,100mm

1шт.

13

84513235

FUEL TANK

Assy, Incl 7, 19

1шт.

14

84415880

RING,64mm OD, 90mm x 90mm L

1шт.

15

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

17

83998666

CAP

1шт.

17

47681952

PLUG,Female

Replaced 83998666

1шт.

18

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

19

84293447

CAP,128.7mm D

1шт.

20

84276394

PLATE

1шт.
