Запчасти Case 590SN (88.035.19[01]) - DIA KIT, DUAL-AUX, PILOT CONTROLS, STANDARD DIPPER (88) - ACCESSORIES

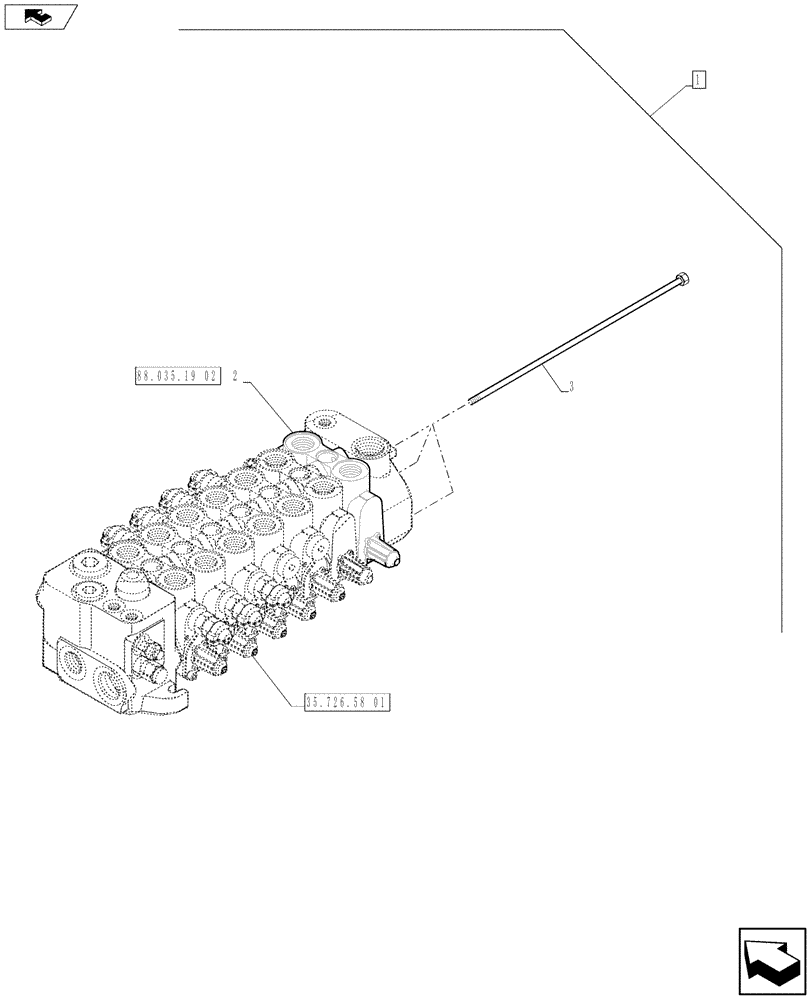

Схема запчастей Case 590SN - (88.035.19[01]) - DIA KIT, DUAL-AUX, PILOT CONTROLS, STANDARD DIPPER (88) - ACCESSORIES
88.035.19 02
35.726.58 01
3
home
1
2

Артикул

Название

Примечание

Количество

1

84492790

SERVICE KIT

Dual-Aux, Pilot Controls, Standard Dipper, Incl 2 - 3, Serial Range: -`0

1шт.

See Ref. 88.035.19 [02] to 88.035.19 [03]

1шт.

2

84278691

HYD VALVE SECTION

Bi-Dir Section, Assy

1шт.

3

87751102

BOLT

Tie Bolt

3шт.

Выбрано товаров: 4
