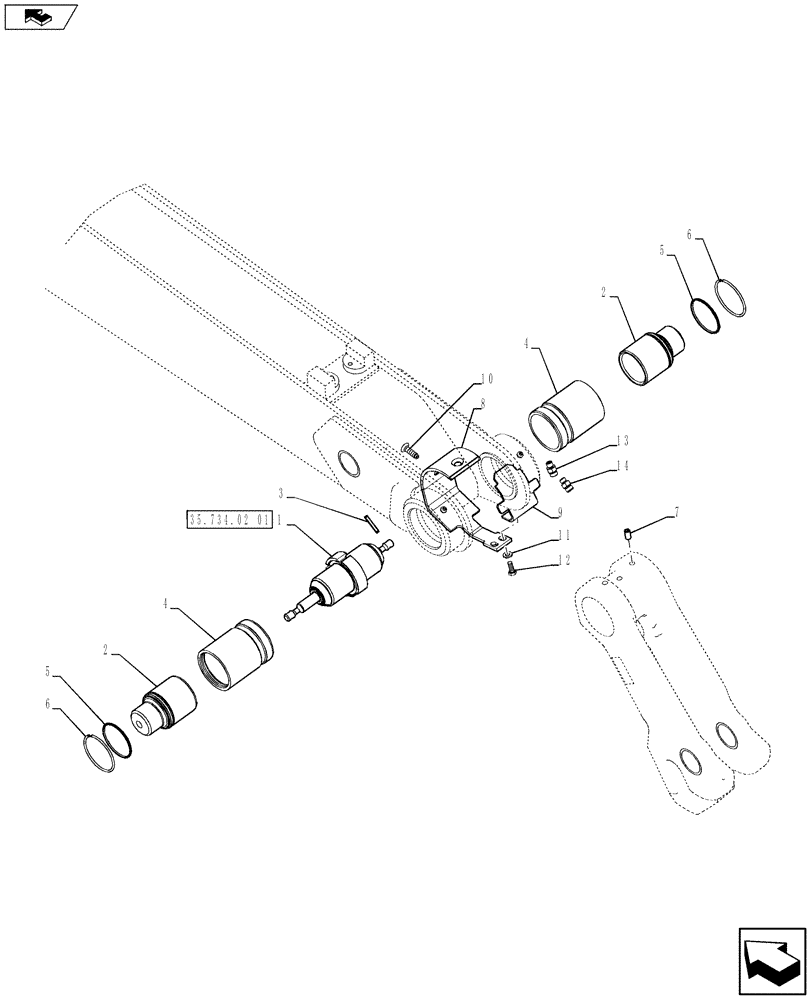

Запчасти Case 590SN (84.100.20) - VAR - 442017 - BACKHOE BUCKET, COUPLING, HYDRAULIC (84) - BOOMS, DIPPERS & BUCKETS

1

84270939

HYDRAULIC CYLINDER,Double Acting, 19.1mm Rod, 80.6mm Stroke

Assy

1шт.

1

84270939R

REMAN-HYD CYLINDER

1шт.

1

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

2

84249377

PIN,78.2mm OD x 114.5mm L

2шт.

3

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

4

448676A1

HYD CYL SLEEVE,76.4mm ID x 88.8mm OD x 112.5mm L

2шт.

5

434891A1

WIPER SEAL

2шт.

6

406624A1

RING,81.38mm OD, Ext

2шт.

7

418070A1

SET SCREW,M10 x 20mm

4шт.

8

84288091

GUARD

1шт.

9

84300757

GUARD

1шт.

10

84317837

COUNTERSUNK SCREW

2шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

12

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

2шт.

13

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

14

84265115

REDUCER FITTING

1шт.
