Запчасти Case 590SN (84.100.13[02]) - STANDARD DIPPER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

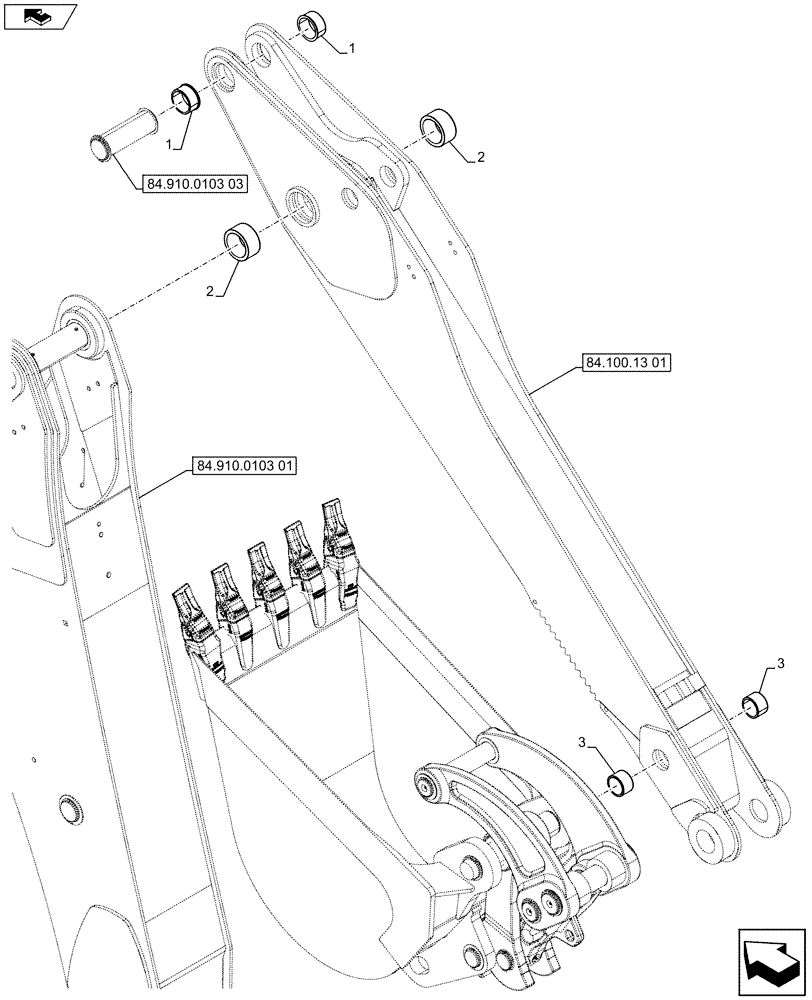

Схема запчастей Case 590SN - (84.100.13[02]) - STANDARD DIPPER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
84.910.0103 03
1
2
1
3
3
2
home
84.100.13 01
84.910.0103 01

Артикул

Название

Примечание

Количество

1

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

70.19mm ID x 79.98mm OD x 34mm H

2шт.

2

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

80.19mm ID x 99.98mm OD x 50mm H

2шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

50.19mm ID x 59.98mm OD x 36mm H

2шт.

Выбрано товаров: 3
