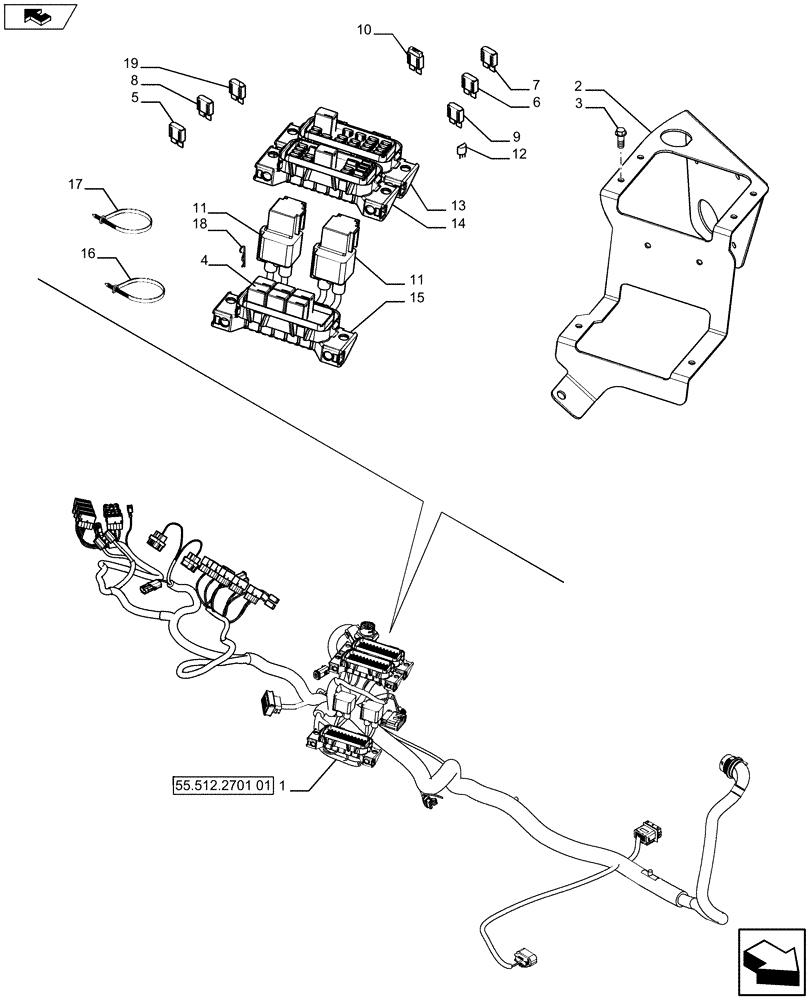

Запчасти Case 590SN (55.512.2701[02]) - VAR - 423060, 423061, 423062 - INSTRUMENT PANEL - RH - FUSE BOX - TRANSMISSION (POWERSHIFT) (55) - ELECTRICAL SYSTEMS

1

84526793

WIRE HARNESS

Assy, Incl 2 - 19, Serial Range: -C9045

1шт.

1

47480931

WIRE HARNESS

Assy, Incl 2 - 19, Start Serial: D9045

1шт.

2

84292270

BRACKET

1шт.

3

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

4

87655334

RELAY,12V, 35A, Micro

35A, Road Lights

8шт.

5

121411A1

FUSE,7.5A, Mini, Brown

2шт.

6

121410A1

FUSE,5A, Mini, Tan

11шт.

7

121413A1

FUSE,15A, Mini, Blue

2шт.

8

121412A1

FUSE,10A, Mini, Red

6шт.

9

121416A1

FUSE,30A, Mini, Green

5шт.

10

416569A1

DIODE ELEMENT,7300W

Bussman 280 Series

6шт.

11

84271717

RELAY,12V, 50A

70A Sealed

2шт.

12

84292399

KEY

6шт.

13

84290788

DECAL

Fuses

1шт.

14

84290785

DECAL

Fuses, Relays and Diodes

1шт.

15

84290787

DECAL

Relays

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

17

84292402

CABLE TIE,203mm L

5шт.

18

87707841

CLIP,Hole DIA 6.35mm

1шт.

19

121414A1

FUSE,20A, Mini, Yellow

2шт.
