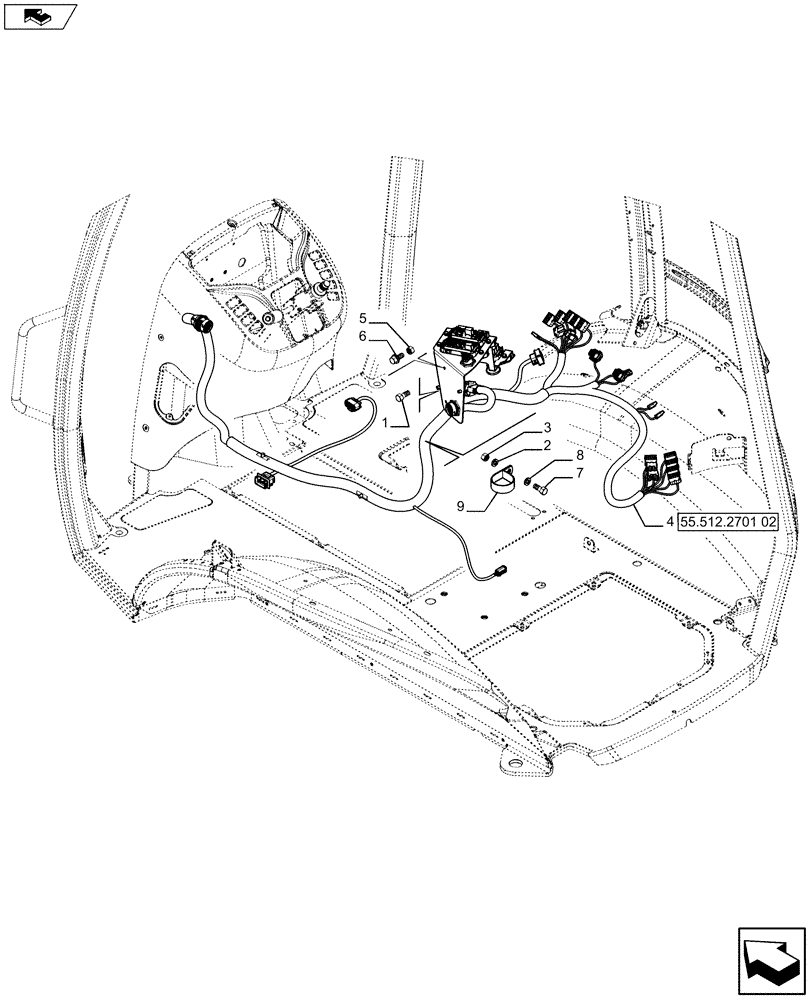

Запчасти Case 590SN (55.512.2701[01]) - VAR - 423060, 423061, 423062 - INSTRUMENT PANEL - RH - HARNESS - TRANSMISSION (POWERSHIFT) (55) - ELECTRICAL SYSTEMS

1

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

2

892-11008

LOCK WASHER,8mm ID

1шт.

3

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

4

84526793

WIRE HARNESS

Assy, Side, Powershift Transmission, Serial Range: -C9045

1шт.

4

47480931

WIRE HARNESS

Assy, Side, Powershift Transmission, Start Serial: D9045

1шт.

5

832-10406

NUT,M6 x 1, Cl 8

2шт.

6

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

9

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.
