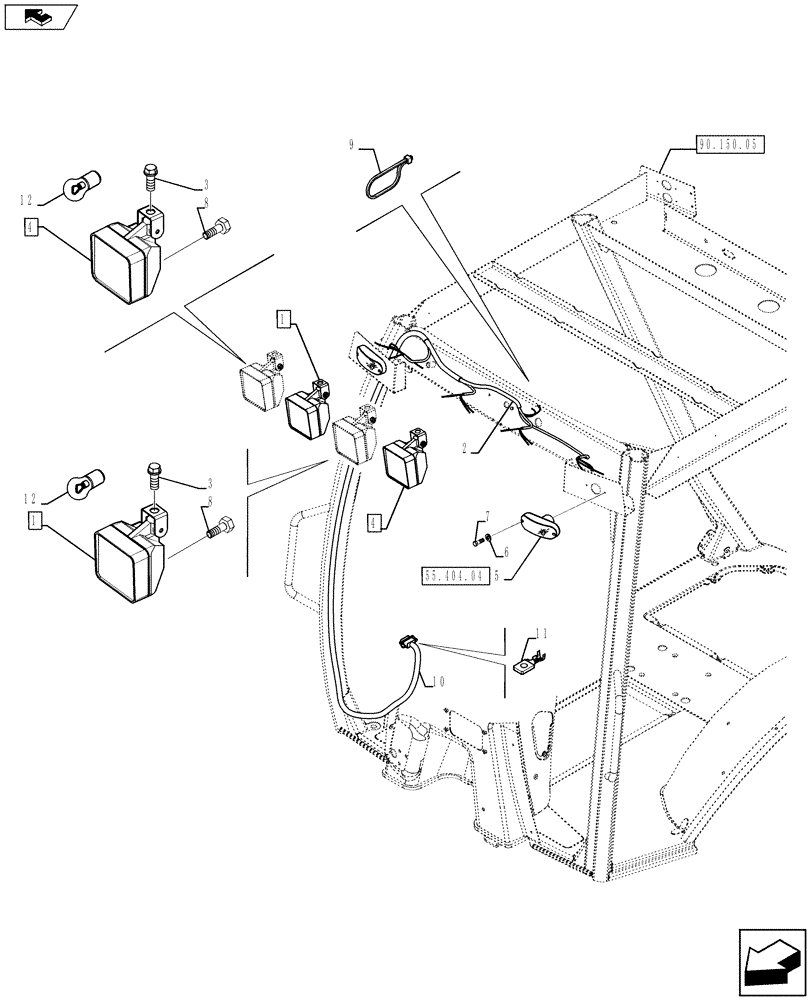

Запчасти Case 590SN (55.404.02[02]) - VAR - 423000 - CANOPY, LAMP (55) - ELECTRICAL SYSTEMS

1

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Incl 12, Flood 12V 55W

2шт.

1

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

2шт.

2

84292401

HARNESS

Front Lights, Canopy, Serial Range: -C7337

1шт.

2

47533334

WIRE HARNESS

Front Lights, Canopy, Start Serial: D7337

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

5шт.

4

84236850

LIGHT,Halogen, 12V, 55W, Clear

Work, Driving 12V 55W H3

2шт.

4

47682629

WORK LAMP

LAMP, WORK, LED

2шт.

5

D135384

LAMP,12V

Assy, See 55.404.04

2шт.

6

495-31022

WASHER,#10

4шт.

7

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

4шт.

8

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

Self Tap Screw

4шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

84543627

WIRE HARNESS

A-Post Cab, Serial Range: -C7337

1шт.

10

47533371

WIRE HARNESS

A-Post Cab, Start Serial: D7337

1шт.

11

87707841

CLIP,Hole DIA 6.35mm

1шт.

12

1312210C2

BULB,Halogen H3, 12V, 55W

1шт.
