Запчасти Case 590SN (44.511.0401) - VAR - 9200010 - WHEELS, FRONT - TIRES - 2WD (44) - WHEELS

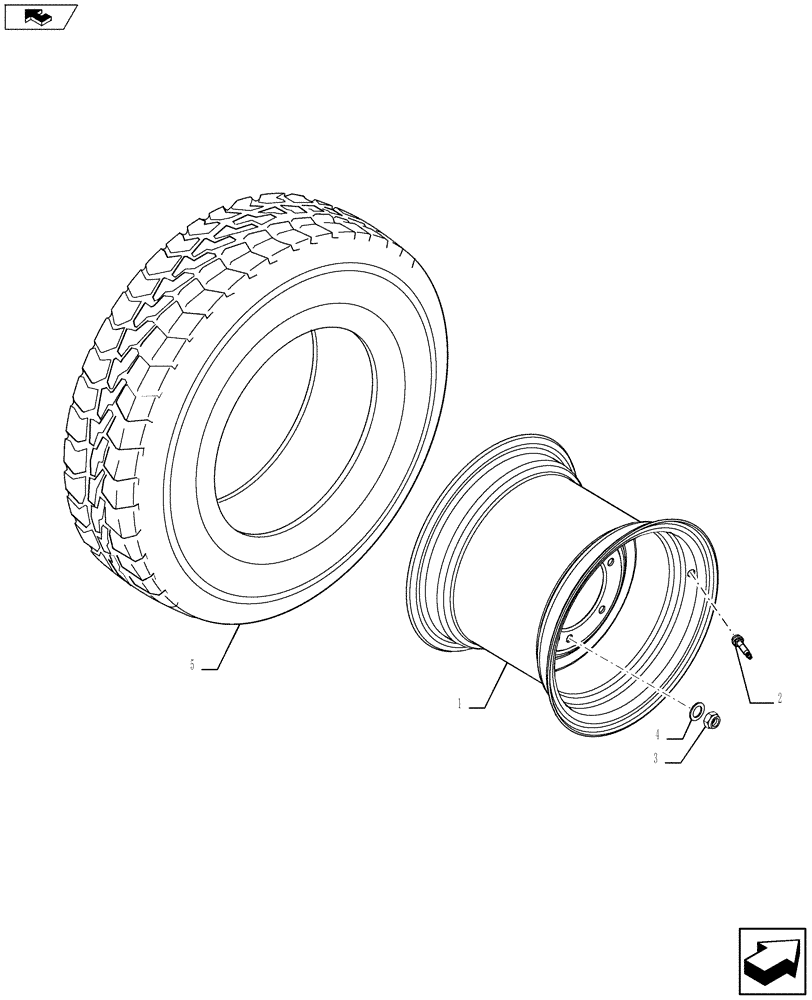

Схема запчастей Case 590SN - (44.511.0401) - VAR - 9200010 - WHEELS, FRONT - TIRES - 2WD (44) - WHEELS
1
5
3
4
home
2

Артикул

Название

Примечание

Количество

1

87599084

WHEEL ASSY,10.5x17.5, 266.8mm W, 8 Holes, CASE Power Tan

10.5 x 17.5

2шт.

2

387897R91

VALVE STEM

2шт.

3

100092

WHEEL NUT,M18 x 1.5, Cl 8

16шт.

4

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

16шт.

5

NS

NOT SERVICED

TIRE, 14.5/.75 x 16.1 10 PLY, Purchase Locally

2шт.

Выбрано товаров: 5
