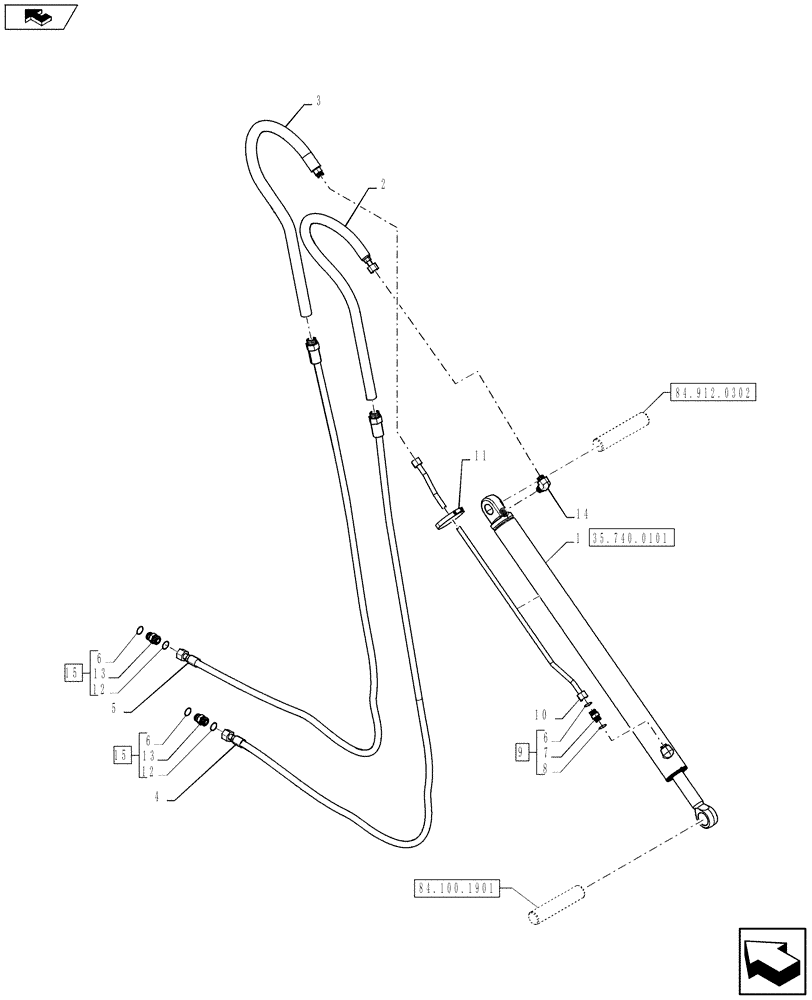

Запчасти Case 590SN (35.740.0201) - VAR - 423076 - BACKHOE ARM, EXTENDABLE DIPPER, HYDRAULIC LINE, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421679

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.04mm Bore, 1220mm Stroke

Extendable Dipper; Assy

1шт.

2

84343076

HOSE,12.5mm ID x 958mm L

EHOE Cylinder Head

1шт.

3

84343074

HOSE,12.5mm ID x 945mm L

EHOE Cylinder Rod

1шт.

4

84264054

HOSE ASSY.,16mm ID x 2924mm L

Valve to EHOE Cylinder Head

1шт.

5

84264055

HOSE ASSY.,16mm ID x 2938mm L

Vavle to EHOE Cylinder Rod

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Hyd. Connector; Incl in 9

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Protective Sleeve

1шт.

9

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 6 - 8

1шт.

10

84295705

RIGID TUBE

EHOE Cylinder Rod

1шт.

11

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Hyd. Connector; Incl in 15

1шт.

14

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

15

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 6, 12 -13

2шт.
