(35.737.0206) - DIPPER, CYLINDER

Запчасти Case 590SN (35.737.0206) - DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

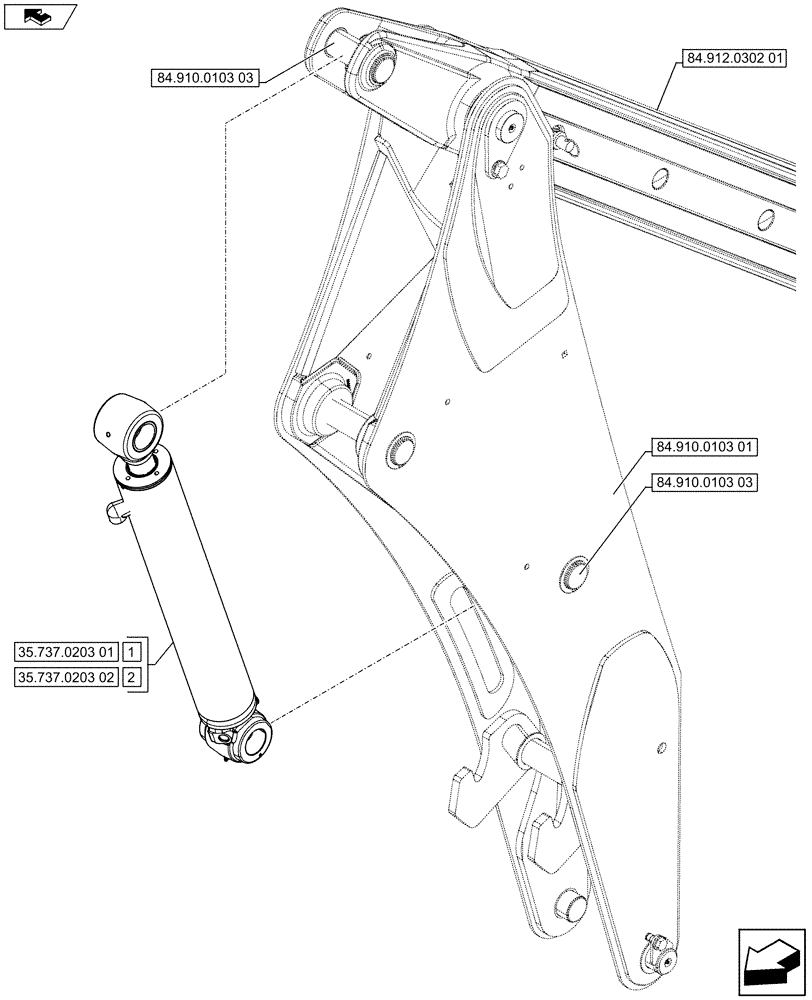

Схема запчастей Case 590SN - (35.737.0206) - DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS
35.737.0203 02
2
1
home
84.912.0302 01
35.737.0203 01
84.910.0103 01
84.910.0103 03
84.910.0103 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84420672

HYDRAULIC CYLINDER,Double Acting, 69.9mm Rod, 597.7mm Stroke

ASSY, Serial Range: -C9057

1шт.

2

47458145

HYDRAULIC CYLINDER,69.9mm Rod, 133.4mm Bore, 597.7mm Stroke

ASSY, Start Serial: D9057

1шт.

Выбрано товаров: 2
