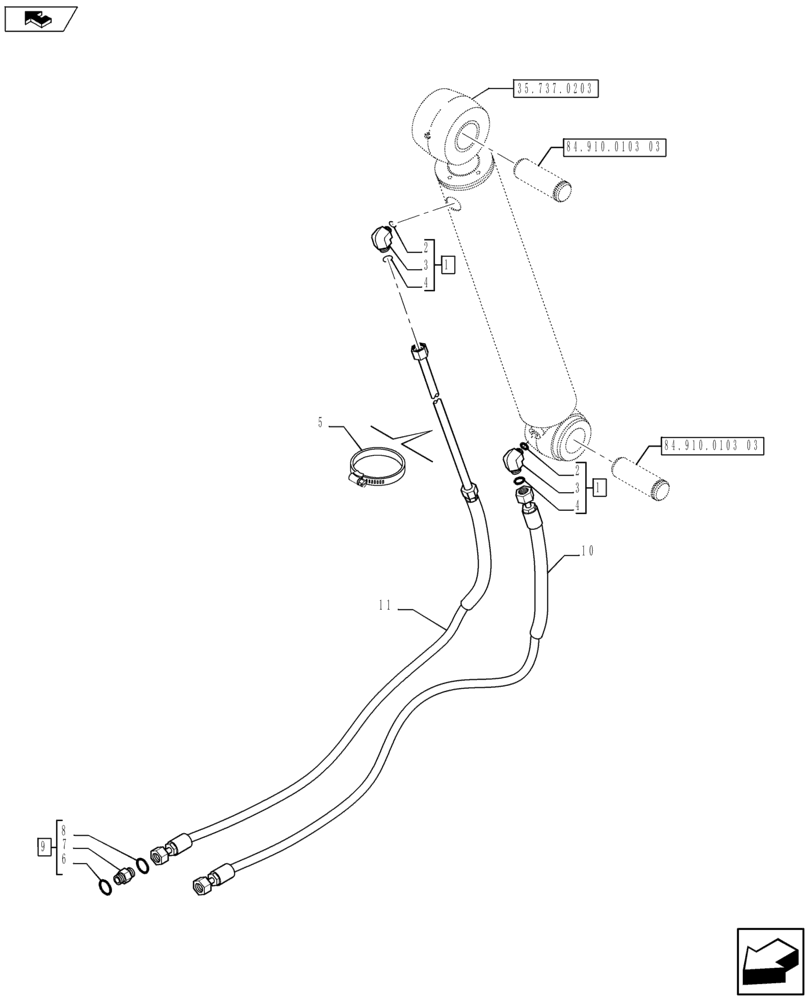

Запчасти Case 590SN (35.737.0103) - DIPPER CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Assy, Incl 2 - 4

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Hyd. connector; Incl in 1

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

2шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Hyd. connector; Incl in 9

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 6 - 8

2шт.

10

84281984

HYDRAULIC HOSE,19mm ID x 2268mm L

to Dipper Cylinder Head

1шт.

11

84323406

HYD TUBE

to Dipper Cylinder Rod

1шт.
