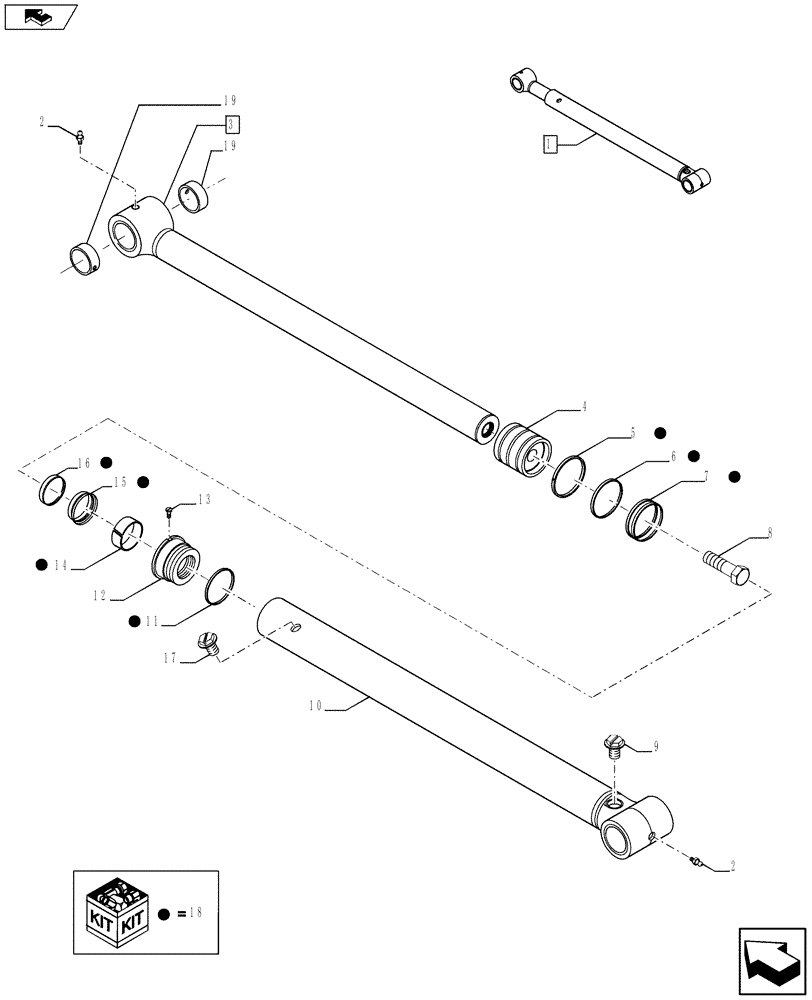

Запчасти Case 590SN (35.736.0103) - BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421589

HYDRAULIC CYLINDER,Double Acting, 69.9mm Rod, 139.7mm Bore, 1030.5 Stroke

Assy, Incl 2 - 19

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

84233180

ROD,69.9mm OD x 1358.33mm L

Assy, Incl 19

1шт.

4

84233187

PISTON ROD/GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1шт.

9

353-782

PLUG,Slotted, 1 1/16"-12

1шт.

10

84205603

BARREL,139.63mm Bore Dia

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

84233185

GLAND,145.58mm Bore, 70.21mm Rod, 86.6mm W

1шт.

13

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

1шт.

18

84259220

SEAL KIT,69.9mm Rod x 139.7mm Bore

1шт.

19

D151062

BUSHING,80.19mm ID x 90mm OD x 30mm L

2шт.
