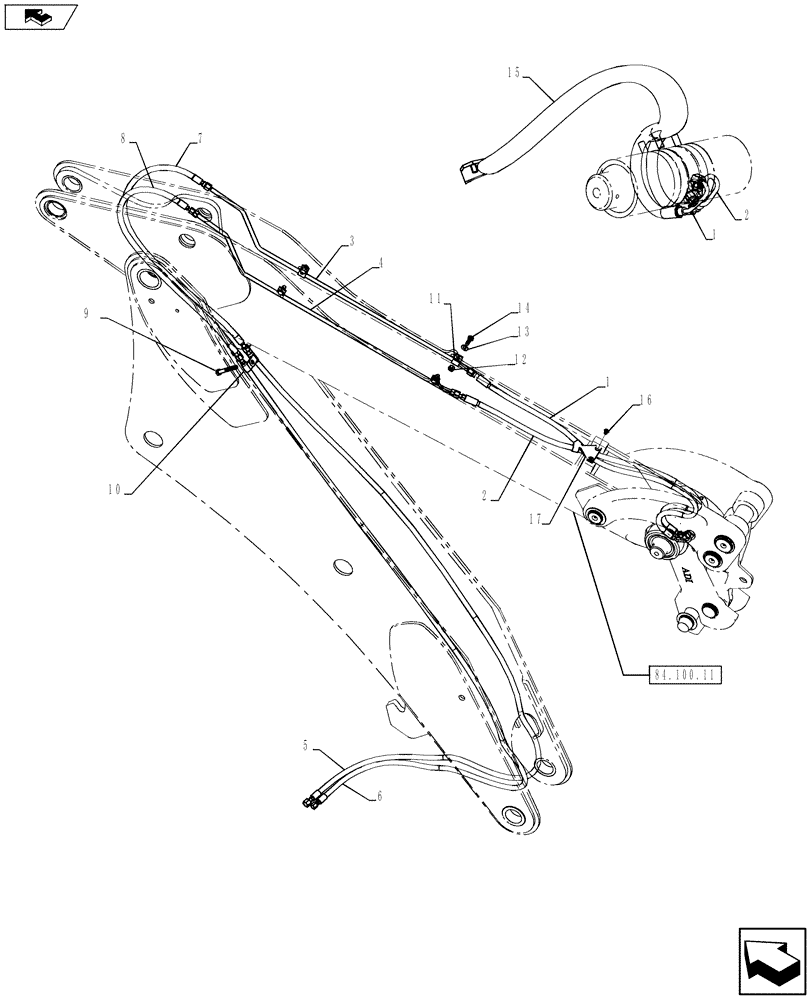

Запчасти Case 590SN (35.727.0101) - HYDRAULICS - COUPLER, BACKHOE BUCKET (STANDARD DIPPER) (35) - HYDRAULIC SYSTEMS

1

84338030

HYD TUBE

1шт.

2

84338027

HYD TUBE

1шт.

3

84263539

HYD TUBE

1шт.

4

84343139

HYD TUBE

1шт.

5

84263979

HOSE ASSY.,6.3mm ID x 1103mm L

1шт.

6

84263978

HOSE ASSY.,6.3mm ID x 1119mm L

1шт.

7

84263978

HOSE ASSY.,6.3mm ID x 1119mm L

1шт.

8

84263979

HOSE ASSY.,6.3mm ID x 1103mm L

1шт.

9

87733372

SPACER,13.8mm ID x 21.3mm OD x 50.8mm L

1шт.

10

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

11

84261209

CLAMP,1/2" clamping pipes

4шт.

12

829-1310

NUT,M10, Cl 10

4шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

15

825-11412

NUT,M12 x 1.25, Cl 8

1шт.

16

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

17

87418551

CLAMP

1шт.

18

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

2шт.
