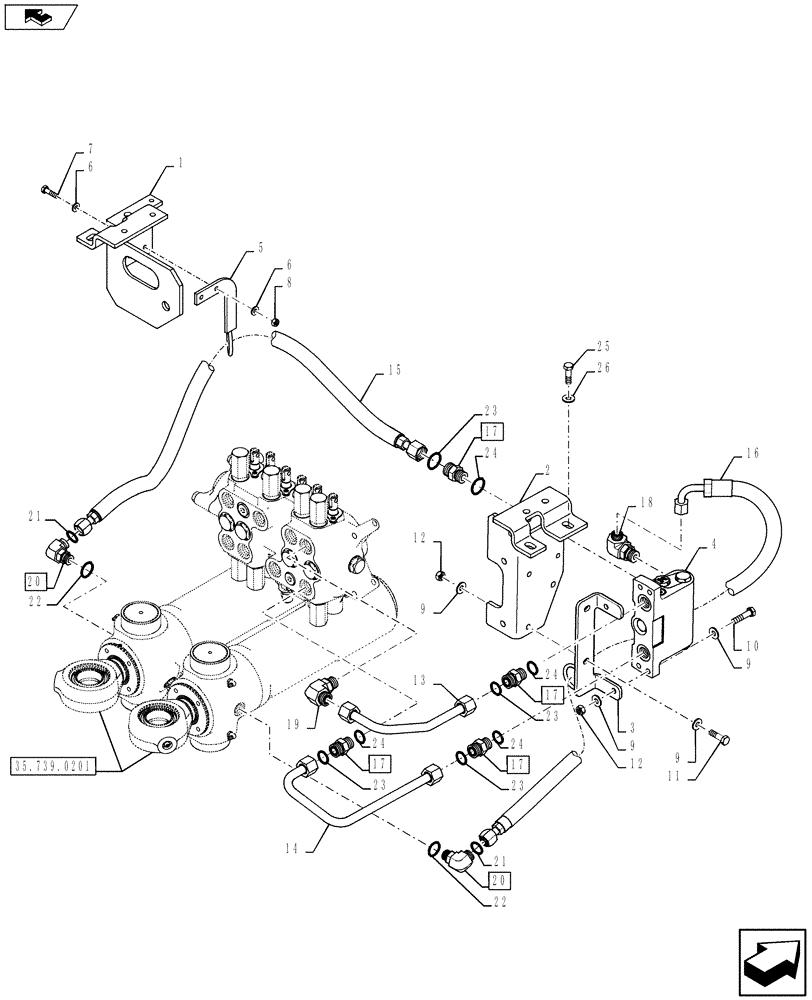

Запчасти Case 590SN (35.726.31) - VALVE INSTALL - SWING CUSHION (DAMPENING) (35) - HYDRAULIC SYSTEMS

1

84270125

BRACKET

1шт.

2

87703557

BRACKET

1шт.

3

87648711

BRACKET

1шт.

4

87480653

DAMPING VALVE

1шт.

5

87633538

BRACKET

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

10

86980404

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

13

84254943

HYD TUBE

1шт.

14

84254944

HYD TUBE

1шт.

15

84285086

HOSE,12.5mm ID x 1100mm L

1шт.

16

84254941

HYDRAULIC HOSE,12.5mm ID x 935mm L

1шт.

17

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Assy, Incl 23 - 24

4шт.

18

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

1шт.

19

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

20

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Assy, Incl 21- 22

2шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

24

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

26

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.
