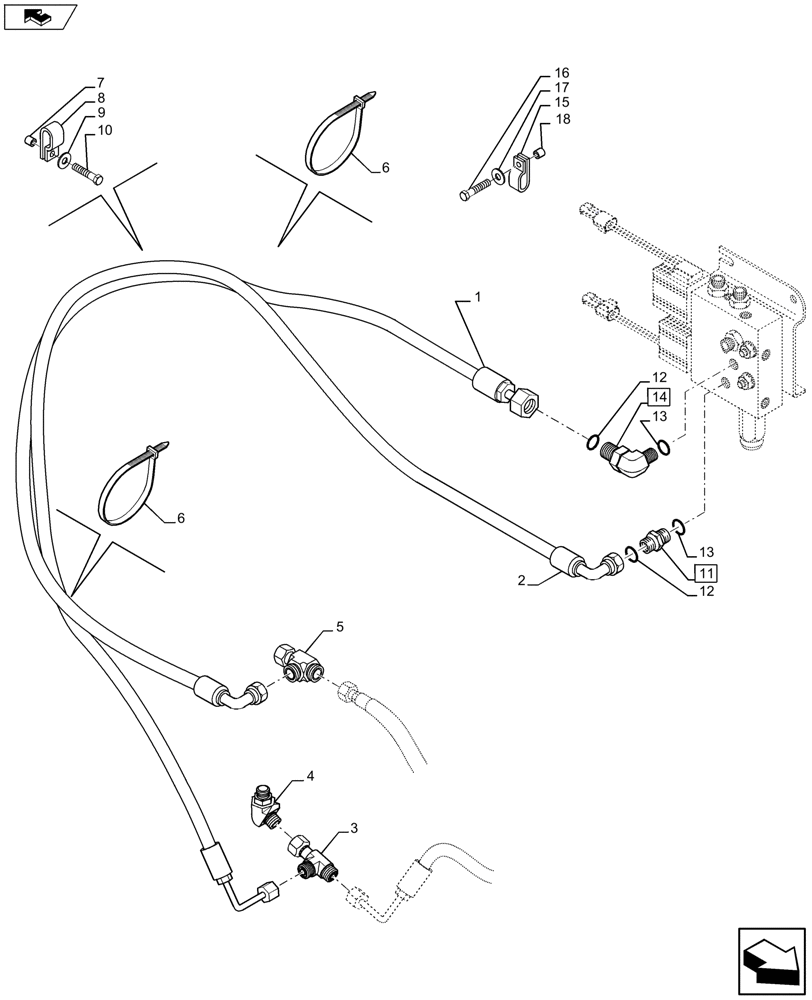

Запчасти Case 590SN (35.726.2501) - COUPLER VALVES FOR FOR MECH CONTROLS (35) - HYDRAULIC SYSTEMS

1

84298502

HOSE ASSY.,10mm ID x 1732mm L, SAE 100R16 Type S

1шт.

2

84329300

HOSE ASSY.,6.3mm ID x 1796mm L, SAE 100R16 Type S

1шт.

3

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

1шт.

4

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

7

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

1шт.

8

L302731

CLAMP,19mm D Clamping Pipes

1шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

10

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 12 - 13

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 12 - 13

1шт.

15

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

18

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.
