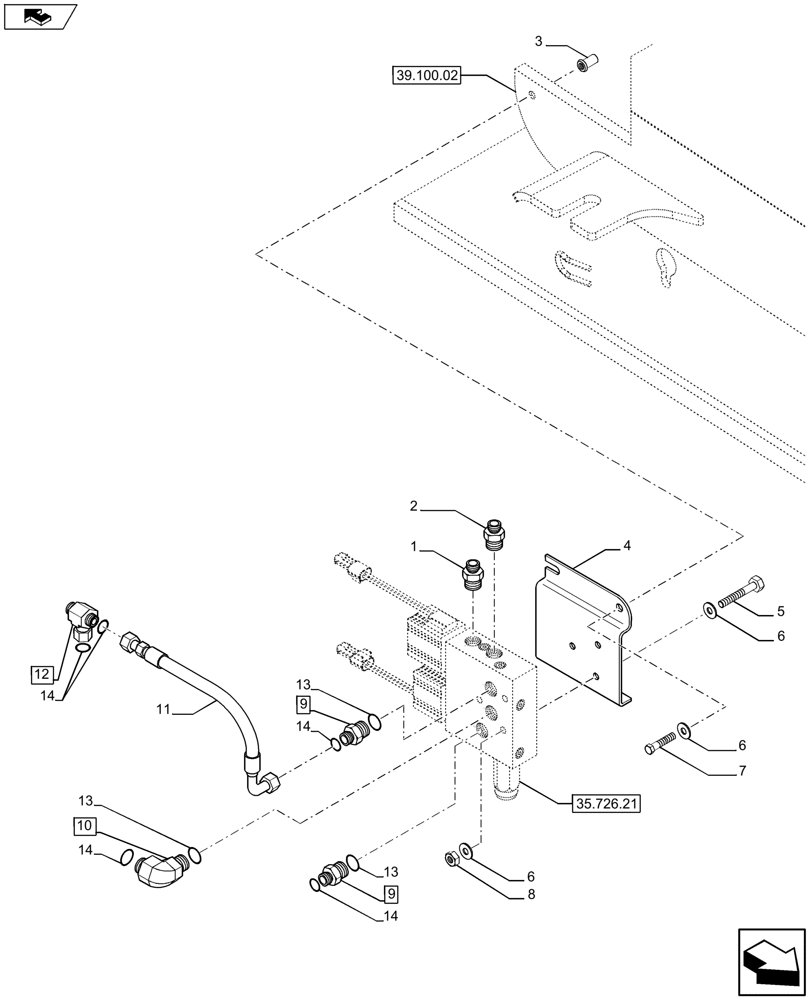

Запчасти Case 590SN (35.726.25) - VALVE INSTALL - SINGLE COUPLER (35) - HYDRAULIC SYSTEMS

1

84261550

FITTING,11/16"-6 ORFS x 1/2"-5 ORB

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

4

84275116

BRACKET

1шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

7

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 13 - 14

2шт.

10

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 13 - 14

1шт.

11

84514721

HOSE ASSY.,10mm ID x 360mm L

1шт.

12

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

Assy, Incl 14 (q.ty 2)

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
