Запчасти Case 590SN (35.726.1608[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, COMPONENTS, W/ STANDARD DIPPER, W/ FOOT SWING CONTROLS - C7373 (35) - HYDRAULIC SYSTEMS

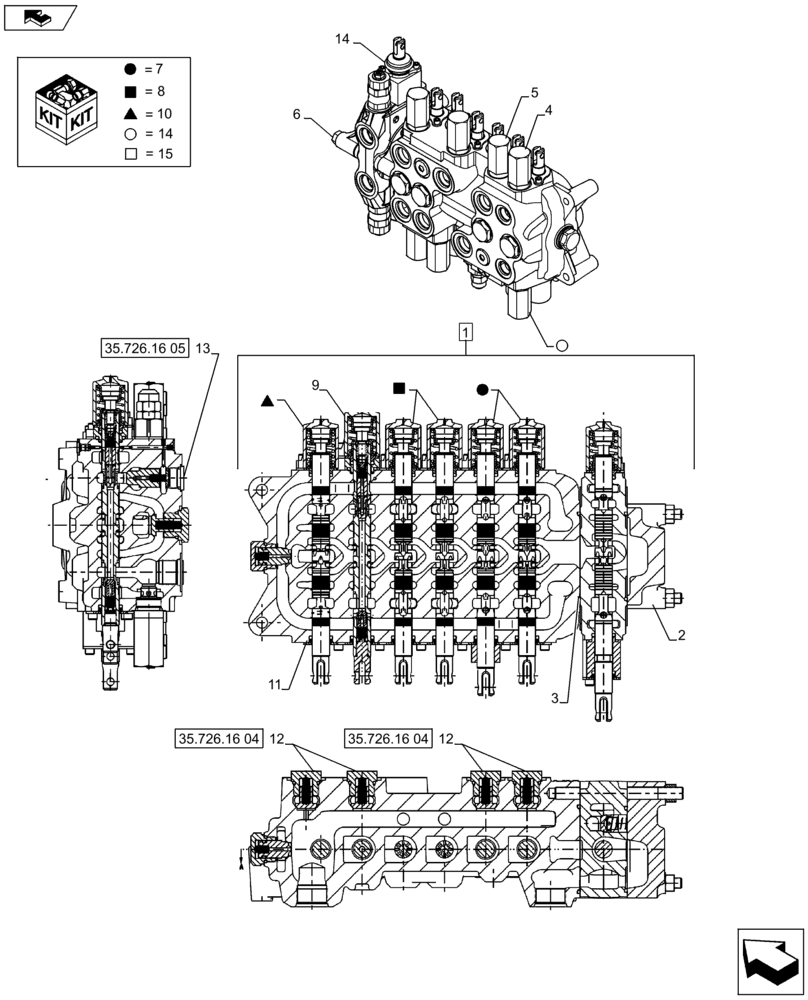

Схема запчастей Case 590SN - (35.726.1608[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, COMPONENTS, W/ STANDARD DIPPER, W/ FOOT SWING CONTROLS - C7373 (35) - HYDRAULIC SYSTEMS
14
home
4
35.726.16 04
2
5
12
35.726.16 05
10
10
7
13
15
14
8
9
8
6
14
12
1
3
35.726.16 04
7
11

Артикул

Название

Примечание

Количество

1

84273245

VALVE

Assy, Incl 2 - 15

1шт.

2

87433030

OUTLET

1шт.

3

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

4

84296800

VALVE PRESSURE RELIE

2шт.

5

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

6шт.

Set the Relief to the Setting of the One that is Being Replaced

1шт.

6

81868381

CHECK VALVE,1-1/16" - 12

1шт.

7

84296859

KIT

2шт.

8

84296826

SERVICE KIT

2шт.

9

84296862

KIT

1шт.

10

84296861

SERVICE KIT

1шт.

11

84315193

SEAL

6шт.

12

87426238

VALVE, CHECK

Assy

4шт.

13

87428486

VALVE, CHECK

Assy

1шт.

14

84276556

SERVICE KIT

1шт.

15

84296786

SEAL KIT

Not shown

1шт.

Выбрано товаров: 16
