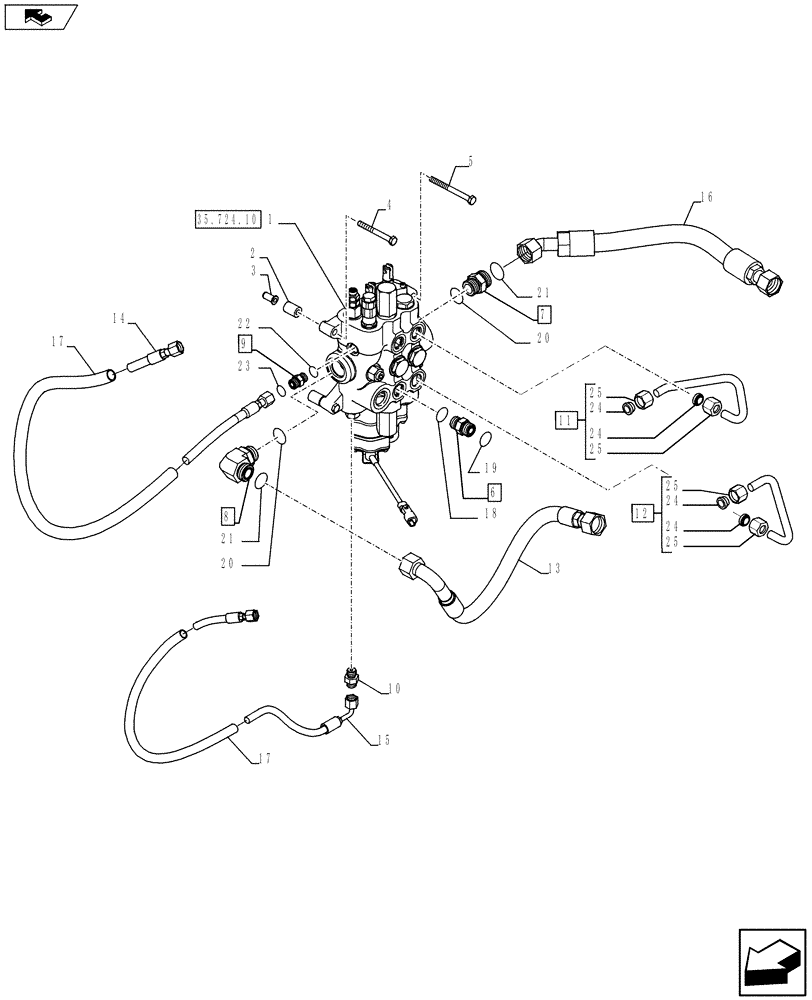

Запчасти Case 590SN (35.701.25) - HYDRAULICS - VALVE, LOADER CONTROL - 2 SPOOL VALVE, W/O PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

84217762

HYDRAULIC VALVE

Assy

1шт.

2

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

4

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

5

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

6

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Assy, Incl 18 - 19

4шт.

7

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Assy, Incl 20 - 21

3шт.

8

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

Assy, Incl 20 - 21

1шт.

9

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Assy, Incl 22 - 23

1шт.

10

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

11

84293154

TUBE

Assy, Incl 24 - 25

1шт.

12

84293149

TUBE

Assy, Incl 24 - 25

1шт.

13

84245419

HOSE ASSY.,19.05mm ID x 678.4mm L, SAE 100R16

1шт.

14

84358585

HOSE ASSY.,12.5mm ID x 1200mm L

1шт.

15

84280705

HOSE ASSY.,6.3mm ID x 1275mm L

1шт.

16

84278155

HOSE ASSY.,25mm ID x 640mm L

1шт.

17

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

2шт.

18

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

25

703-903

TUBE NUT,1" - 14

2шт.
