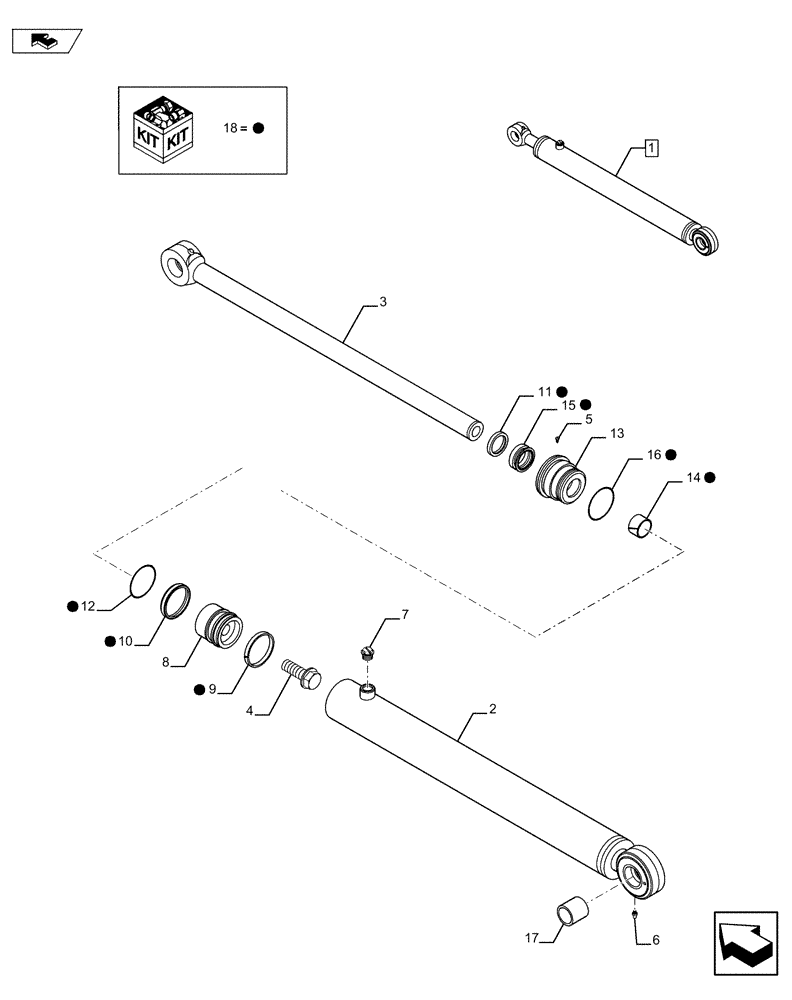

Запчасти Case 590SN (35.701.0302) - FRONT LOADER HYDRAULIC SYSTEM - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421599

LIFT CYLINDER,Double Acting, 47.6mm Rod, 740mm Stroke

Assy, Incl 2 - 17

1шт.

1

84210940R

REMAN-HYD CYLINDER

580SN WT WIDE TRACK, 590SN, Both BACKHOE LOADER TIER 4A (3/12-), Assy, LIFT CYLINDER, Reman for New PN 84421599

1шт.

1

84210940C

CORE-HYD CYLINDER

Return Number

1шт.

2

84238629

TUBE,88.9mm Bore Dia

1шт.

3

84238632

ROD,47.6mm OD x 972.8mm L

1шт.

4

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

8

84238638

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

84238636

GLAND

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.

18

84258339

SEAL KIT,47.6mm Rod x 88.9mm Bore

1шт.
