Запчасти Case 590SN (33.202.12) - BRAKE LINE, REAR AXLE (33) - BRAKES & CONTROLS

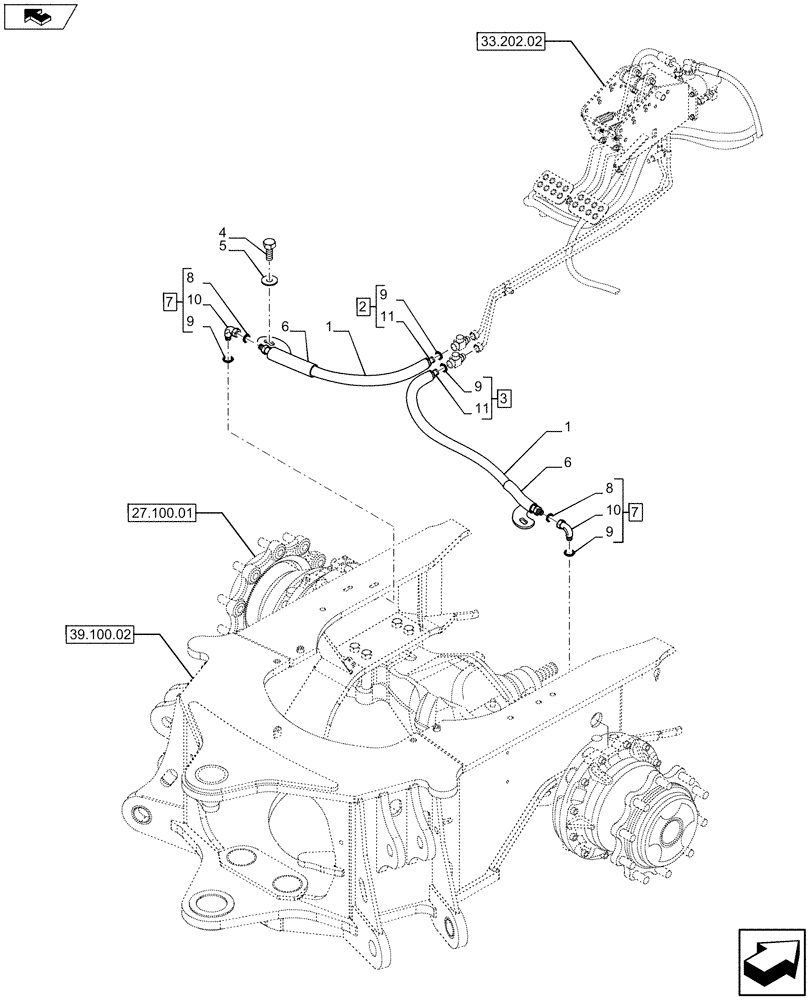

Схема запчастей Case 590SN - (33.202.12) - BRAKE LINE, REAR AXLE (33) - BRAKES & CONTROLS
11
10
7
1
39.100.02
7
6
1
5
33.202.02
9
3
10
11
6
9
4
8
2
27.100.01
9
9
8

Артикул

Название

Примечание

Количество

1

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

2шт.

2

84258169

HOSE ASSY.,10mm ID x 715mm L

1шт.

3

84258167

HOSE ASSY.,10mm ID x 915mm L

Assy, Incl 9, 11

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

6

87699882

GUARD

2шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 8 - 10

2шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

Выбрано товаров: 11
