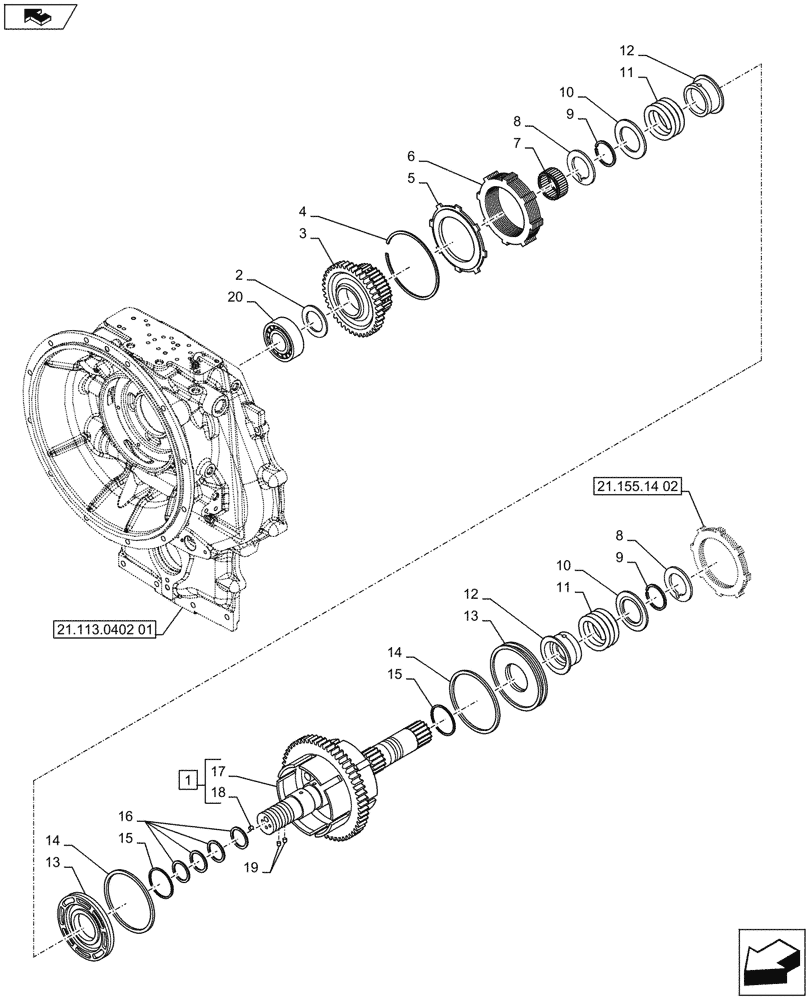

Запчасти Case 590SN (21.155.14[01]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, DRIVE SHAFT, DRIVEN SHAFT (21) - TRANSMISSION

1

87705476

SHAFT,60T

Powershift Transmission, Z=60, Assy, Incl 17, 18

1шт.

2

358639A1

WASHER

1шт.

3

87705470

GEAR,44T

Powershift Transmission, Z=44

1шт.

4

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

5

310519A1

PLATE

Backing

1шт.

6

87705465

CLUTCH OVERHAUL KIT

Powershift Transmission, 2nd and 3rd Speed

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

Roller

1шт.

8

358640A1

WASHER

2шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

2шт.

10

181161A1

PLATE, THRUST

2шт.

11

358637A1

SPRING

Piston Return

2шт.

12

358641A1

TRANSMISSION SLEEVE

2шт.

13

358644A1

PISTON

2шт.

14

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

2шт.

15

358642A1

SEALING RING

2шт.

16

358645A1

SEALING RING

4шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

18

87701779

RIVET,7mm OD

3шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

D3 x 8

2шт.

20

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.
